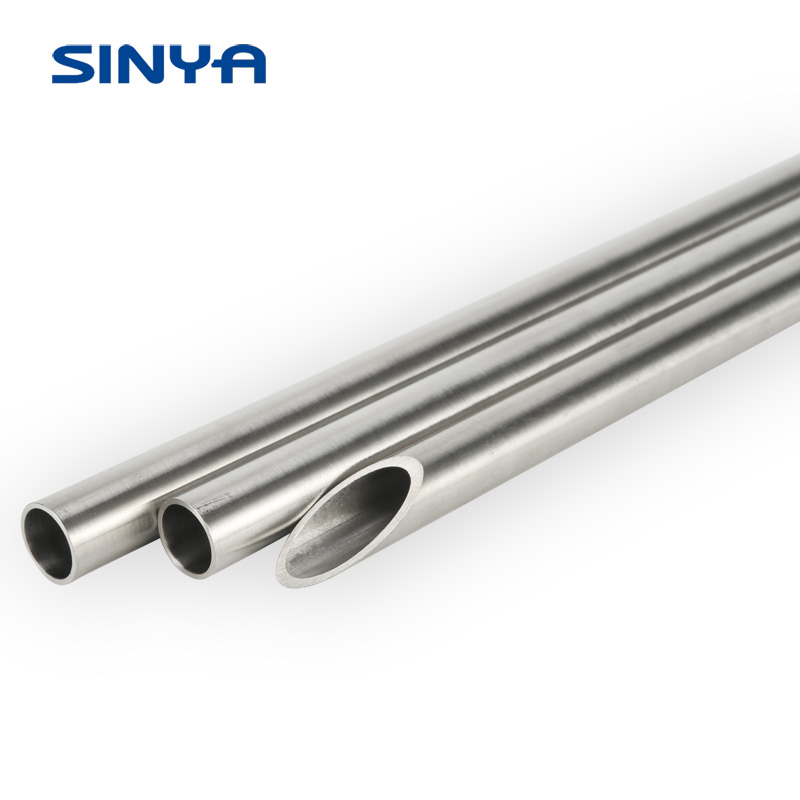

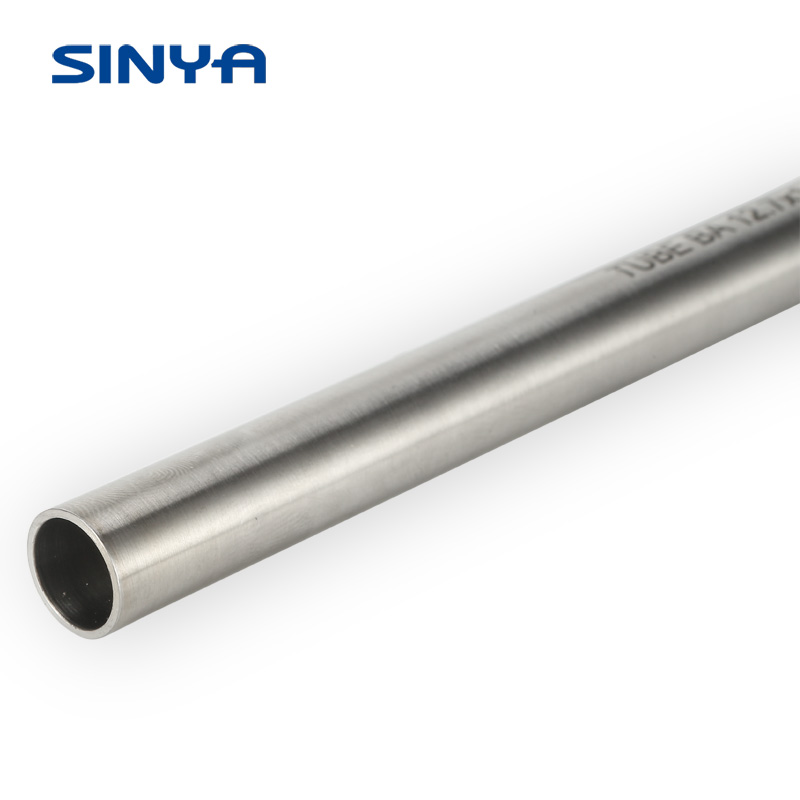

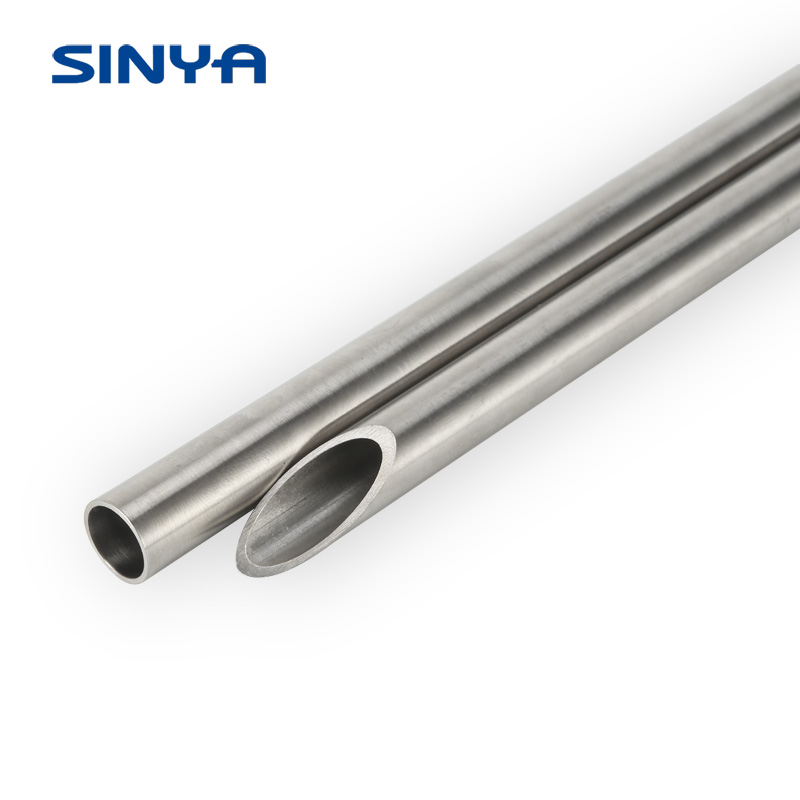

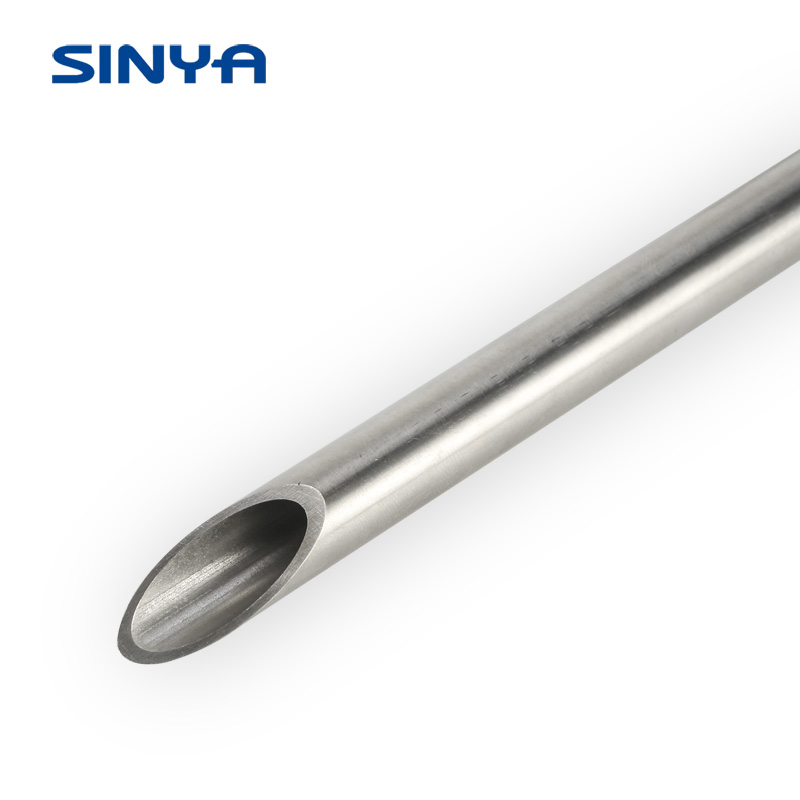

Instrumentaiton Seamless Tube Tubing ASTM A269 A312 A213 Bright Anneal Pickled Stainless steel 304L,316L 1/4,3/8,1/2,3/4 1 inch





Instrumentation Tubing is a vital part of Tubing system which widely used with Instrumentation Tube Fittings. Proper Tubing selection with Tubing standard,tolerance,wallthickness,material,temperature,surface finish into consideration are necessary. We manufacture high quality Instrumentation Tubing as per ASTM A269 with strict quality control to meet installation requirements of Tube Fittings.

1. Cold drawn / Precision rolling Seamless

2.316/316L stainless steel

3. Hardness not exceed HRB 80

4.Tube ends plastic cap protected

5. AP,BA,Surface Mechanically polished

6.Available sizes from 1/8" to 1“ (3mm to 25m)

7. Lot and heat code trackable



Allowable stress value between -20 F and 100 F(-28.9 C~ 37.8 C) is 19,500 psi.

Safety factor is 4 Consider tensile strength is 75,000 psi.

Note: For gas service,please DON'T select tube thickness of the shaded area.

Ordering Information:

316/316L-1/2"-0.065-6M-BA Means 316/316L Seamless ASTM A269 Tube 1/2"OD x WT0.065" x 6 Meter Bright Annealed.

316/316L-12-1.25-6M-AP Means 316/316L Seamless ASTM A269 Tube 12mm OD x WT1.25mm x 6 Meter Annealing Pickled

Tube OD

Tube Wall Thickness (Inch)

(Inch)

0.028

0.035

0.049

0.065

0.083

0.095

0.109

0.120

1/8

8500

10900













3/16

5400

7000

10200











1/4

4000

5100

7500

10200









5/16



4000

5800

8000









3/8



3300

4800

6500









1/2



2600

3700

5100

6700







5/8





2900

4000

5200

6000





3/4





2400

3300

4200

4900

5800



7/8





2000

2800

3600

4200

4800



1







2400

3100

3600

4200

4700



Tube OD
(mm)

Tube Wall Thickness (mm)

0.71

0.89

1

1.25

1.5

1.65

3

10800

13800

15300







4

7900

10100

11500

14400





6

5000

6500

7400

9400

11500

12700

8



4700

5800

6800

8400

9300

10



3700

4200

5300

6500

7300

12



3000

3400

4400

5300

5900

16





2500

3200

3900

4300

18







2800

3400

3800

20







2500

3000

3400

22







2300

2800

3000

25







2000

2400

2700

Tube OD

Tube Wall Thickness (mm)

     (mm)

2

2.11

2.41

2.5

2.77

3

3.05

3



4



6



8







10



12

6800

7200











16

5300

5700

6600

6800







18

4700

5000

5800

6000

6700





20

4200

4400

5100

5300

6000





22

3800

4000

4600

4800

5400





25

3300

3500

4000

4200

4700

5100

5200
