Hight Pressure 3000psig Stainless Steel Adjustable Non Return Valves 6000 Psig Cracking 1/3 psi Instrument Poppet Check Valves 6000 Psig High Pressure Metering Valves 3000psi Instrument Adjustable



With the compact structure, CKV series check valve is applicable for instrument panels and systems, which can be
operated accurately. CKV series valves are usually used as check valves of normally closed type. When the drop pressure between the inlet and the outlet is higher than the set value of the spring, the spring inside the valve would move the plug afterwards to form a channel for passing through.

1.Compactstructure,smallsize&beautifulappearance

2.Thecomponentsareallofcommontypeandcanbe interchangeable.

3.Springwithfixedopeningpressurecanbeadjusted.

4.Thepressurecanbeupto6000psi(413bar)

5.Materials316SS&brasscanbeselected.

6.Multipleendconnectionsforselection.

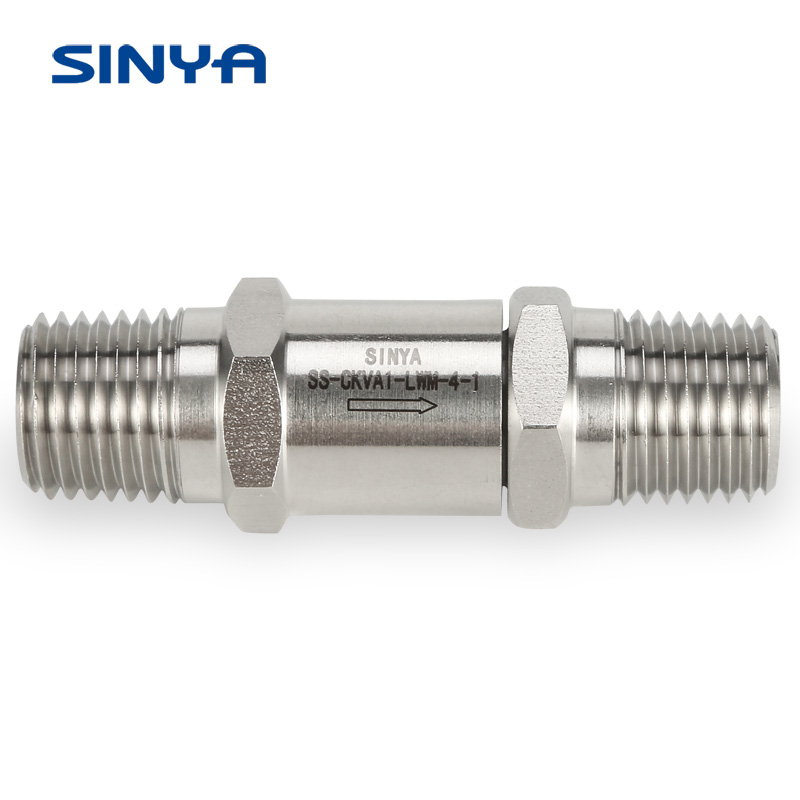

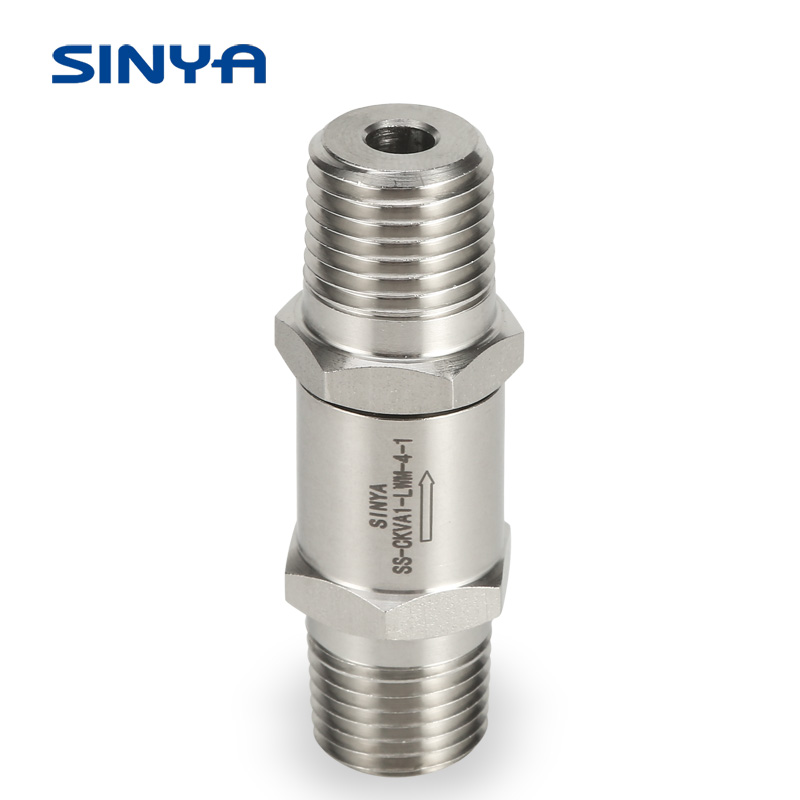

-CKVA1 Check Valve

Order information
End Connection
A
W
(in)
(mm)
(in)
(mm)
(in)
(mm)
-CKVA1-SK-2
1/8
3.17
2.20
56.0
0.63
15.88
-CKVA1-SK-4
1/4
6.3 5
2.38
60.5
0.6 3
15.88
-CKVA1-SK-6
3/8
9.5 2
2.4 8
63.0
0.6 9
17.4
-CKVA1-SK-8
1/2
12.7
3.0 3
77.0
0.9 4
23.8
-CKVA1-SK-12
3/4
19.05
3.4 8
88.5
1.1 3
28.6
-CKVA1-SK-16
1
25.4
4.7 2
120.0
1.3 7
34.9
-CKVA1-SK-6mm
0.24
6
2.3 8
60.5
0.6 3
15.88
-CKVA1-SK-10mm
0.39
10
2.5 0
63.5
0.6 9
17.4
-CKVA1-SK-12mm
0.47
12
3.0 3
77.0
0.9 4
23.8
-CKVA1-LWF-2
NPT1/8
1.8 9
48.0
0.6 3
15.88
-CKVA1-LWF-4
NPT1/4
2.1 5
54.6
0.7 5
19.05
-CKVA1-LWF-6
NPT3/8
2.9 8
75.7
0.8 7
22.2
-CKVA1-LWF-8
NPT1/2
3.5 8
91.0
1.0 6
27.0
-CKVA1-LWF-12
NPT3/4
4.0 9
104.0
1.2 6
32.0
-CKVA1-LWF-16
NPT1
4.8 4
123.0
1.6 2
41.2
-CKVA1-LWM-2
NPT1/8
1.7 1
43.4
0.6 3
15.88
-CKVA1-LWM-4
NPT1/4
2.0 9
53.1
0.6 3
15.88
-CKVA1-LWM-6
NPT3/8
2.7 8
70.6
0.8 7
22.2
-CKVA1-LWM-8
NPT1/2
3.1 6
80.3
0.8 7
22.2
-CKVA1-LWM-12
NPT3/4
4.0 9
104.0
1.2 6
32.0
-CKVA1-LWM-16
NPT1
4.5 3
115.0
1.6 2
41.2
