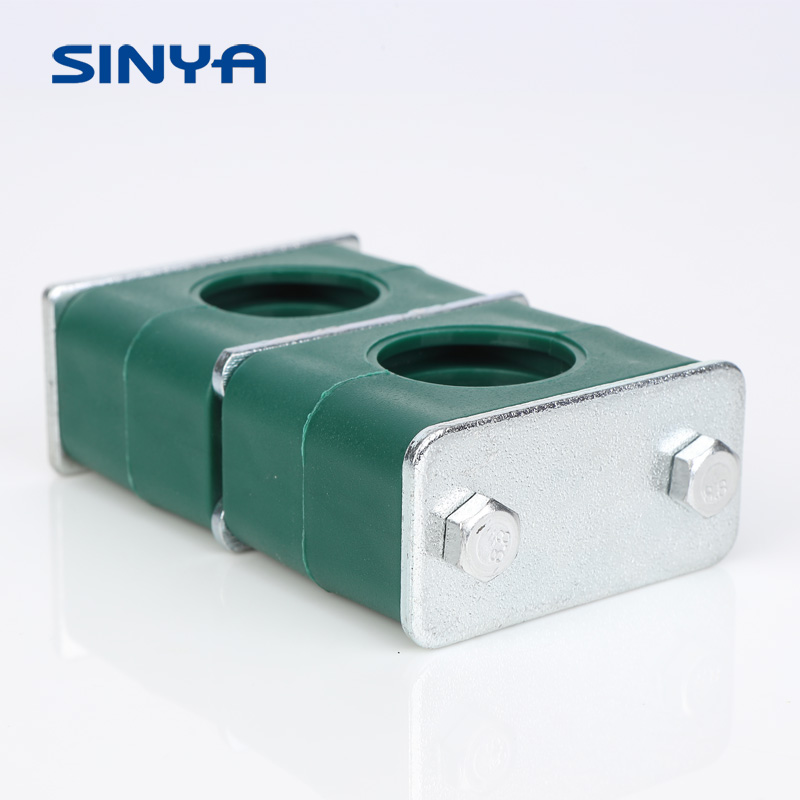

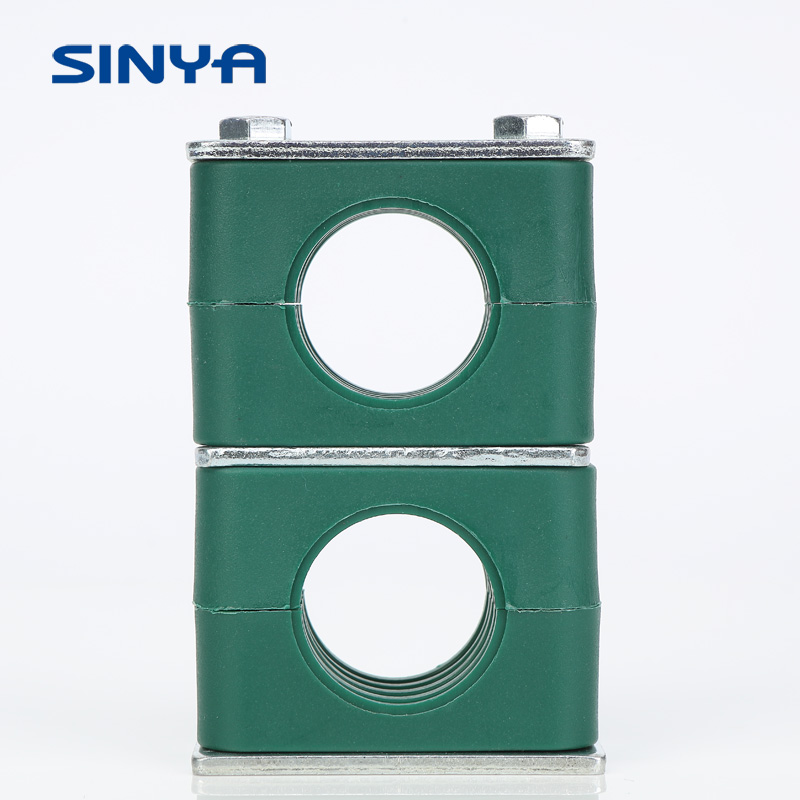

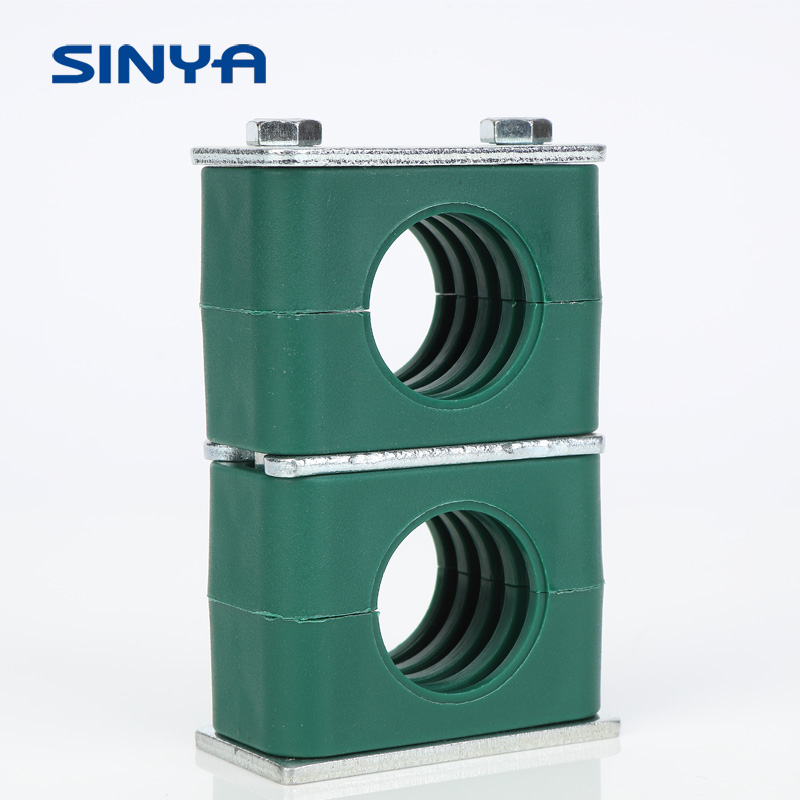

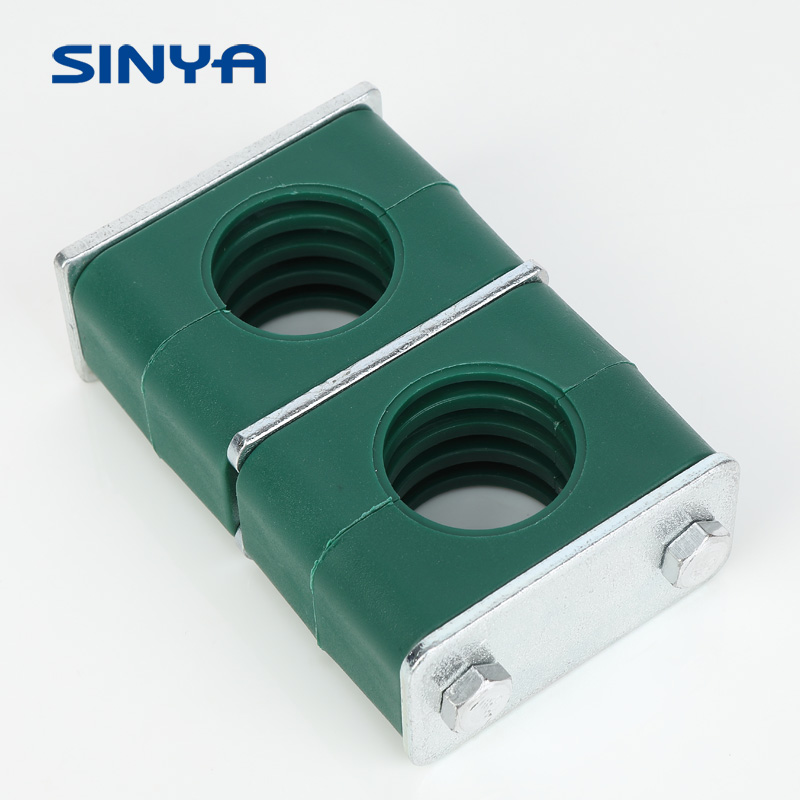

Multilayer Pipe Clamps - DIN 3015 / Stainless Steel Double Layer Pipe Clamp / Inch Tube Clamps / Hydraulic Tube Clamps / Steel Pipe Clamps -DIN3015





Structure
Hydraulic
Size Range
1/2
Material
Stainless Steel, Aluminum, Plastic, Steel
Locking Screw
M6X20, M6X25, M6X30
Surface Finishing
Metal
Finishing
GOOD
Grade
CS +PP
Packing Type
Box
Diameter (Inch)
1/4'' TO 8''
Corrosion Resistant
Yes
Shape
Square
Material Grade
CS + PP
Weight (g)
As Actual
Pressure (Bar)
Upto 500 Bar
Design
DIN 3015
Condition
New
COLOR
Green
DIN
3015

* Heavy Duty Pipe Clamps are used in installations where heavy pipes and high vibrations are encountered
* They are invariably used for trench layout of pipes and in open-weather conditions
* Heavy Duty Pipe Clamps are available with weld plate mounting for all sizes and channel mounting with special "T" nuts for pipe sizes upto 1" or 38 mm OD
* Channels are available in lengths of 1 meter and are economical for multiple mounting on single channel
* Both weld plate and channel mounting designs are available only with top plate in view of the heavy vibration and loading encountered where there are used
* Heavy Duty Clamps with polypropylene bodies are available for pipe size upto 8" or 220 mm OD in the current program
* Heavy Duty Pipe Clamps are also available in vertical mounting arrangement and horizontal multi-clamp arrangement either back to back or run
* Both Standard Duty and Heavy Duty pipe clamps are also available in other mounting forms for compact and efficient piping where the installation has multiple lines stacked vertically or horizontally
* They may be used in horizontal back to back mounting where excessive loads and vibration are encountered

Features

  • Available in plastic / aluminum bodies with steel or stainless steel plates and bolts
  • Resistant to corrosion and rust
  • Multilayer Pipe - Tube clamps are specially designed for light duty / heavy duty & twin series only


Material and design of clamp body:

  • Polypropylene: colour Green.
  • Polyamide: colour Black
  • Thermoplastic elastomer: colour Black
  • Aluminum: colour natural.

Alternative materials and colours in addition to the above stated standard is available upon request.

Materials and surface finishing of metal parts

  • Carbon steel trivalent or yellow zinc plated (standard trivalent plated)
  • Carbon steel phosphated
  • Stainless steel – SS 304 or SS 303
  • Stainless steel – SS 316.
