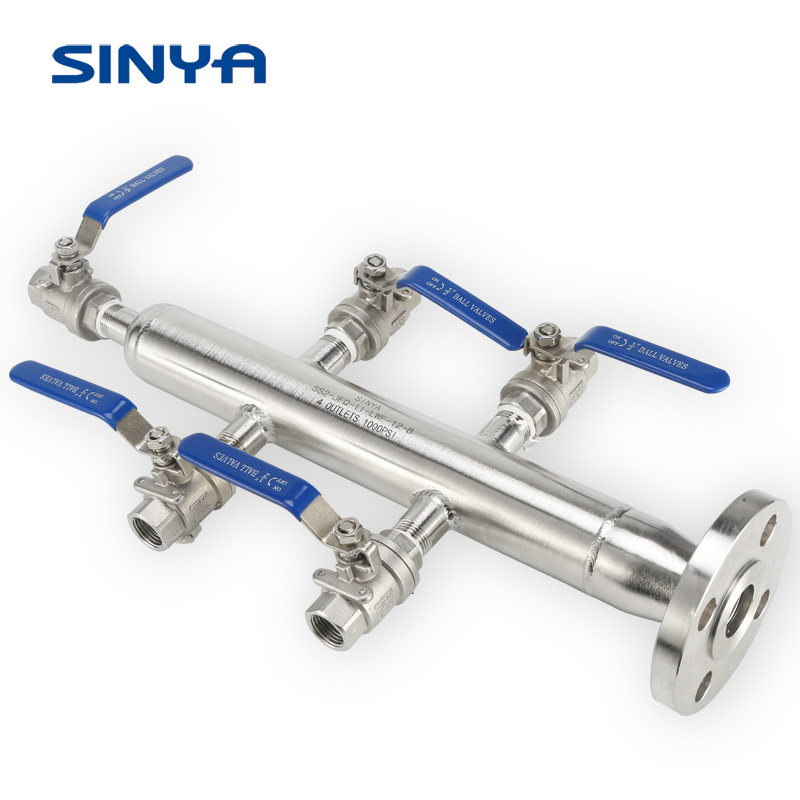

multiple 6 8 10 12 ports ball valve 1000 2000 3000 psi WOG Flange Female Thread NPT 304 316 Air Manifolds Header Distributor





JFQ air distributor is a kind of intermediate fittings to connect the  pneumatic instruments and the branch parts or tubes with one male end or flange connected to the inlet valves for air supply, the other end connected to the ball valves or needle valves if necessary to the instruments or devices for air supply accordingly.The fitting tube would be made of steel, copper, nylonor soft PU Polyurethane. The drainage valve would be supplied with the air distributor for condensed water drainage in the air,so that the condensed water would not enter into the instrument and the instrument can work properly.

Concentrated air supply and convenien to peration.

Multiple connecting methods for selection.

Different tube materials for selection.

Airsupply numbers are distributed accordingly.

Maximum operating pressure would be.



-JFQ-II Air Distributor

Order information
End Connection Size
D
K

Air supply
numbers
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JFQ-Ⅱ-SK-6-6mm
0.24
6
4.72
120
3.25
82.5
6
-JFQ-Ⅱ-SK-12-6mm
0.24
6
4.92
125
3.50
89.0
12
-JFQ-Ⅱ-SK-24-6mm
0.2 4
6
6.1 0
155
4.51
114.5
24
-JFQ-Ⅱ-SK-6-8mm
0.3 1
8
4.7 2
120
3.25
82.5
6
-JFQ-Ⅱ-SK-12-8mm
0.3 1
8
4.9 2
125
3.50
89.0
12
-JFQ-Ⅱ-SK-24-8mm
0.3 1
8
6.1 0
155
4.51
114.5
24
-JFQ-Ⅱ-SK-6-10mm
0.3 9
10
4.7 2
120
3.25
82.5
6
-JFQ-Ⅱ-SK-12-10mm
0.3 9
10
4.9 2
125
3.50
89.0
12
-JFQ-Ⅱ-SK-24-10mm
0.3 9
10
6.1 0
155
4.51
114.5
24
-JFQ-Ⅱ-SK-6-4
1/4
6.3 5
4.7 2
120
3.25
82.5
6
-JFQ-Ⅱ-SK-12-4
1/4
6.3 5
4.9 2
125
3.50
89.0
12
-JFQ-Ⅱ-SK-24-4
1/4
6.3 5
6.1 0
155
4.51
114.5
24
-JFQ-Ⅱ-SK-6-6
3/8
9.5 2
4.7 2
120
3.25
82.5
6
-JFQ-Ⅱ-SK-12-6
3/8
9.5 2
4.9 2
125
3.50
89.0
12
-JFQ-Ⅱ-SK-24-6
3/8
9.5 2
6.1 0
155
4.51
114.5
24
-JFQ-Ⅱ-LWF-2
NPT1/8
4.7 2
120
3.25
82.5
6
-JFQ-Ⅱ-LWF-4
NPT1/4
4.9 2
125
3.50
89.0
12
-JFQ-Ⅱ-LWF-6
NPT3/8
6.1 0
155
4.51
114.5
24


Order information
L
L1
Bal lvalve
Needle valve
Ball valve
Needle valve
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JFQ-Ⅱ-SK-6-6mm
9.06
230
6.30
160
3.15
80
1.57 40

-JFQ-Ⅱ-SK-12-6mm
16.93
430
13.39
340
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-24-6mm
33.46
850
24.80
630
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-6-8mm
9.0 6
230
6.3 0
160
3.15
80
1.5 7
40
-JFQ-Ⅱ-SK-12-8mm
16.93
430
13.39
340
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-24-8mm
33.46
850
24.80
630
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-6-10mm
9.0 6
230
6.3 0
160
3.15
80
1.5 7
40
-JFQ-Ⅱ-SK-12-10mm
16.93
430
13.39
340
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-24-10mm
33.46
850
24.80
630
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-6-4
9.0 6
230
6.3 0
160
3.15
80
1.5 7
40
-JFQ-Ⅱ-SK-12-4
16.93
430
13.39
340
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-24-4
33.46
850
24.80
630
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-6-6
9.0 6
230
6.3 0
160
3.15
80
1.5 7
40
-JFQ-Ⅱ-SK-12-6
16.93
430
13.39
340
2.76
70
1.9 7
50
-JFQ-Ⅱ-SK-24-6
33.46
850
24.80
630
2.76
70
1.9 7
50
-JFQ-Ⅱ-LWF-2
9.0 6
230
6.3 0
160
3.15
80
1.5 7
40
-JFQ-Ⅱ-LWF-4
16.93
430
13.39
340
2.76
70
1.9 7
50
-JFQ-Ⅱ-LWF-6
33.46
850
24.80
630
2.76
70
1.9 7
50
