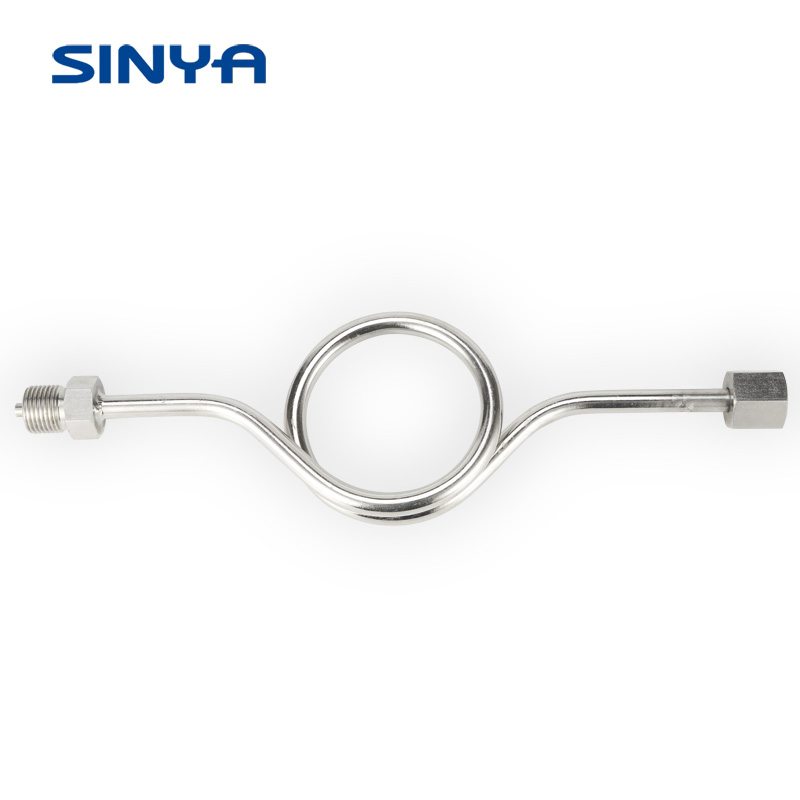

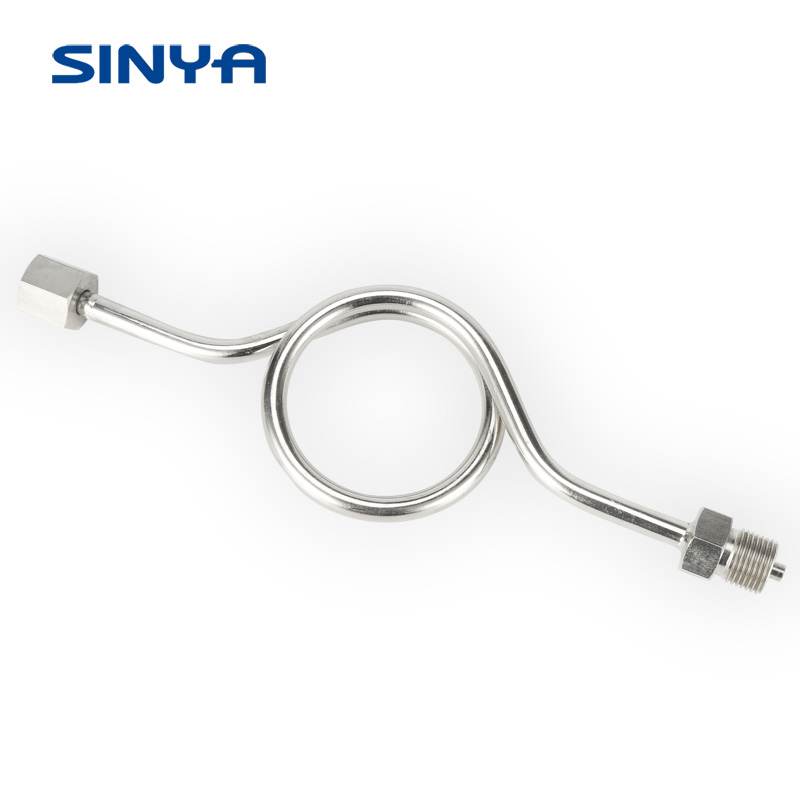

Pipe Q Type 304/316 Stainless Steel Round Ring 6000 PSI 1/2 NPT BSPT Swivel Positionabe Pressure Gauge Snubber Syphon Tube





The products are necessary used in the instrument installation progress for industrial temperature controlling, which is applicable to install temerature-measuring components in the piping or devices, mainly used for the devices, such as: thermoelectric couples, armoured thermoelectric couple of thermal resistance, double-metal thermograph, surface thermoelectric couples, pressure thermograph and so on. There are many kinds of installation methods, for example, by threads, mounting by connectors, protective-sleeve inserting. There are so many advantages of the products as following: small size, compact installation, convenient maintenance, applicable for corrosive or non-corrosive fields.





-TW14 Pressure gauge Syphon Tube

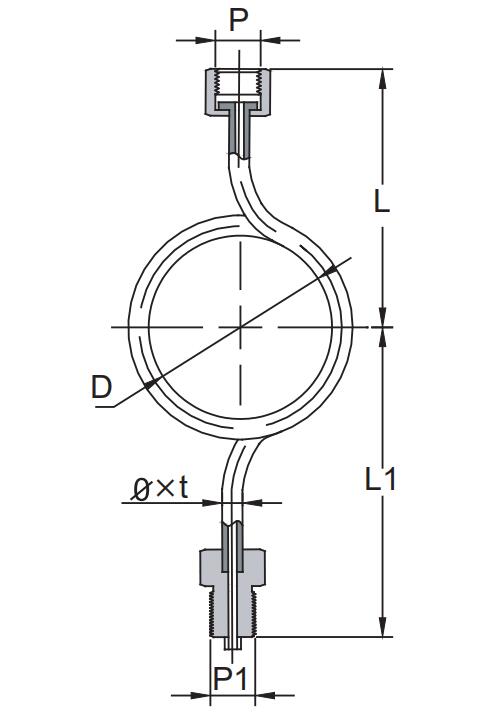

Order information

P

P1
Φ×t
D
L
L1
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-TW14-M14
M14×1.5
M14×1.5
Φ10×2
3.54
90
3.35
85
3.74
95
-TW14-M20
M20×1.5
M20×1.5
Φ14×2
3.94
100
4.72
120
5.12
130
-TW1 4-6G
G3/8
G3/8
Φ10×2
3.5 4
90
3.3 5
85
3.7 4
95
-TW1 4-8G
G1/2
G1/2
Φ14×2
3.9 4
100
4.7 2
120
5.1 2
130
-TW1 4-6N
NPT3/8
NPT3/8
Φ10×2
3.5 4
90
3.3 5
85
3.7 4
95
-TW1 4-8N
NPT1/2
NPT1/2
Φ14×2
3.9 4
100
4.7 2
120
5.1 2
130
-TW1 4-6P
BSPT3/8
BSPT3/8
Φ10×2
3.5 4
90
3.3 5
85
3.7 4
95
