Alloy Steel Forged Tee SS316/304 Pipe Fittings Manufacture in China Stainless Steel Threaded Socket weld Equal Tee Tube Fittings Adapter Stainless 316/316L 6000 PSI Monel Duplex SW BW Instrumentation





1.Each fitting is stamped with specification,size and trade mark.

2.Each fitting is finished by deburring and oil-removing.

3.The union is made with barstocks of high-quality and others are made with forgings and die forgings.

4.Desiging,manufacturing and inspection are in accordance with ANSI B16.11.

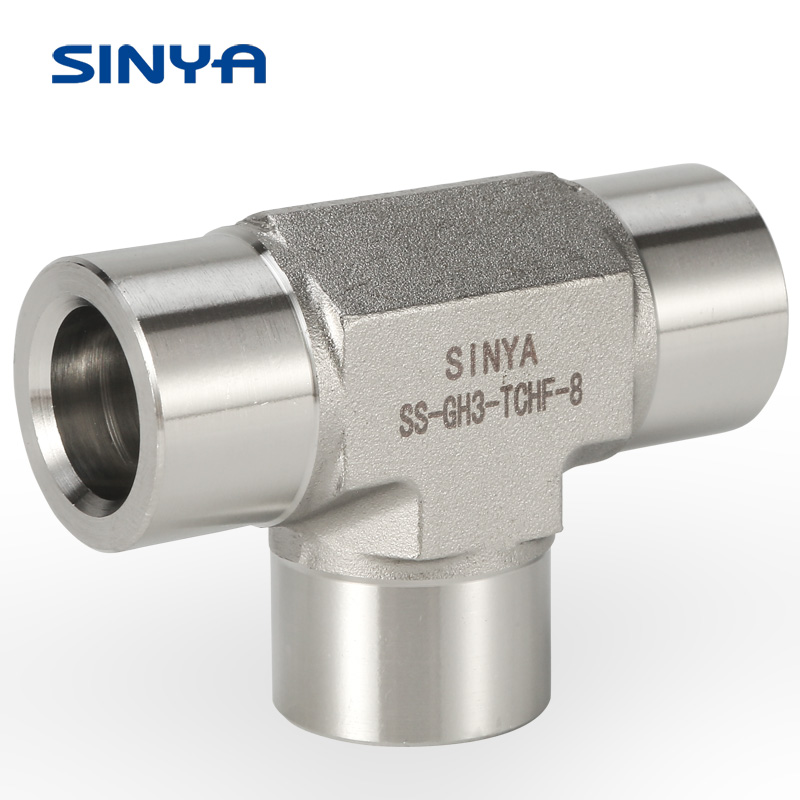

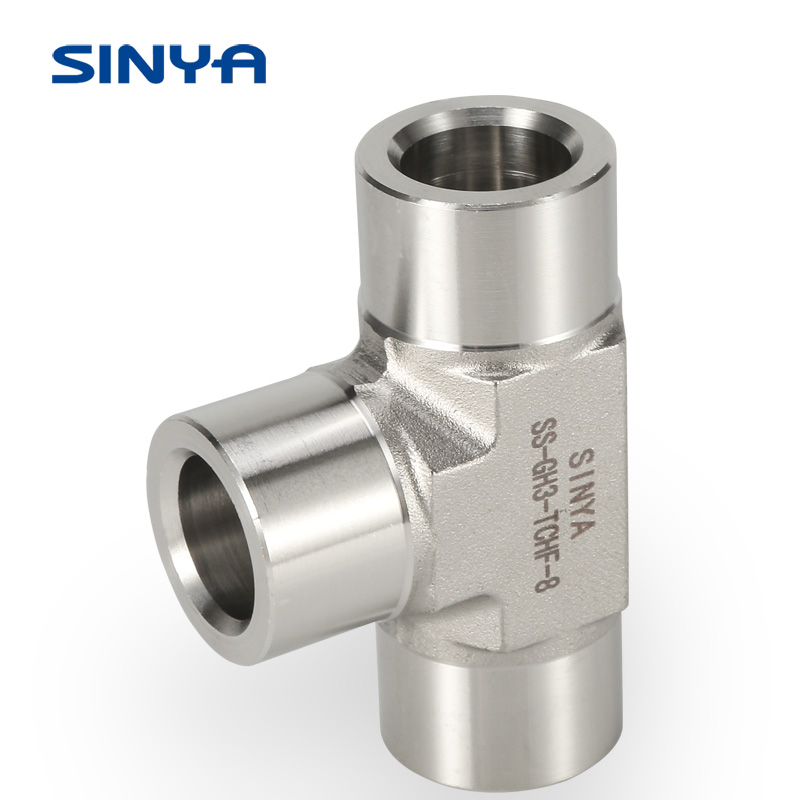

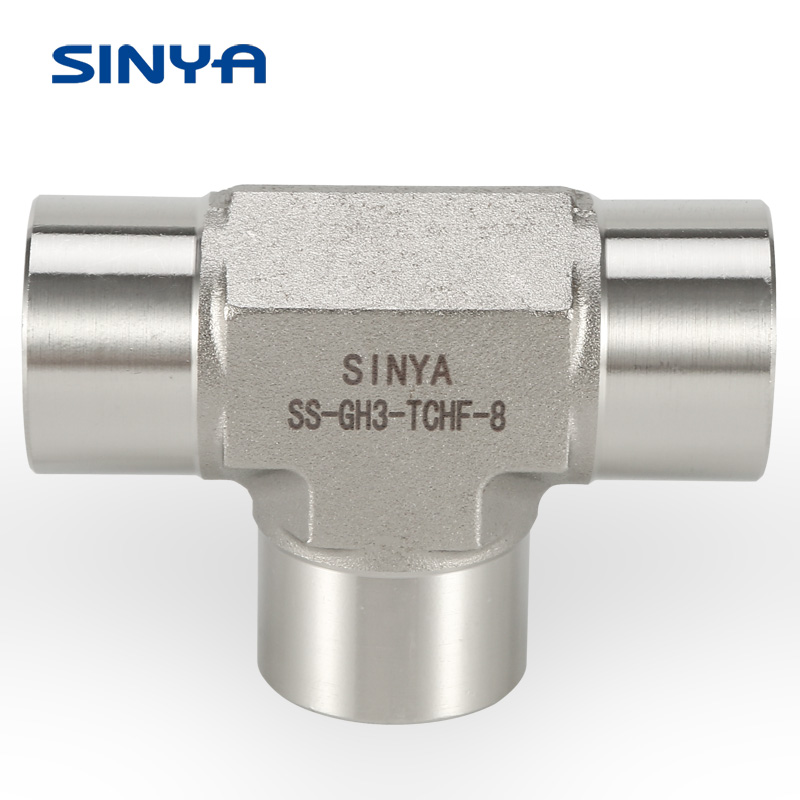

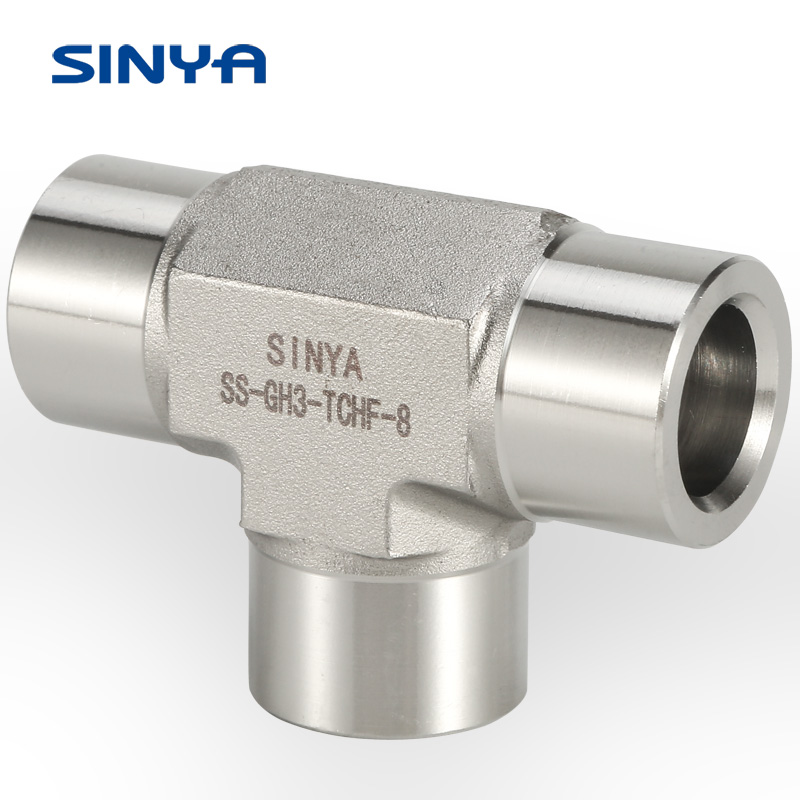

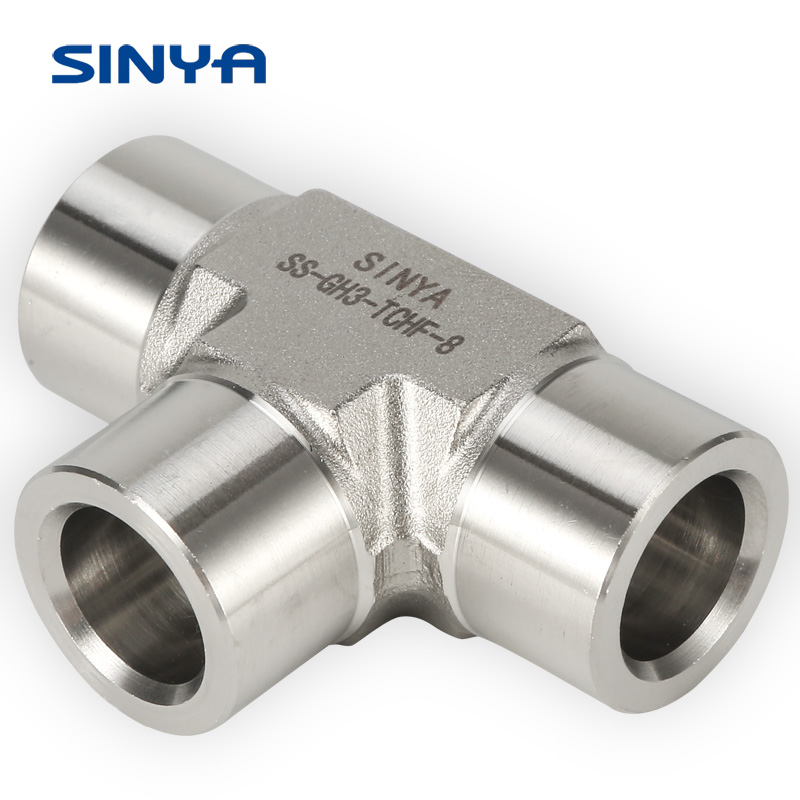

-GH3-TCHF SW Tee

Order information
T
D
A
in/mm
(in)
(mm)
(in)
(mm)
-GH3-TCHF-2
1/8
0.11
2.8
0.35
9
-GH3-TCHF-4
1/4
0.1 9
4.8
0.4 8
12.2
-GH3-TCHF-6
3/8
0.2 8
7.1
0.6 0
15.2
-GH3-TCHF-8
1/2
0.4 1
10.4
0.7 3
18.5
-GH3-TCHF-10
5/8
0.5 0
12.7
0.8 6
21.8
-GH3-TCHF-12
3/4
0.6 3
16
1.0 4
26.4
-GH3-TCHF-16
1
0.8 8
22.4
1.3 6
34.5
-GH3-TCHF-8mm
8
0.2 4
6
0.5 5
14
-GH3-TCHF-10mm
10
0.3 1
8
0.6 3
16
-GH3-TCHF-12mm
12
0.3 9
10
0.7 3
18.5
-GH3-TCHF-14mm
14
0.4 3
11
0.8 1
20.5
-GH3-TCHF-16mm
16
0.4 7
12
0.9 3
23.5
-GH3-TCHF-18mm
18
0.5 5
14
1.0 2
26
-GH3-TCHF-20mm
20
0.5 9
15
1.0 4
26.5
-GH3-TCHF-25mm
25
0.7 5
19
1.3 4
34

Order information
L
W

PSI
(in)
(mm)
(in)
(mm)
-GH3-TCHF-2
0.55
14
0.37
9.5
10000
-GH3-TCHF-4
0.7 5
19
0.5
12.7
10000
-GH3-TCHF-6
0.9 4
24
0.6 9
17.5
8000
-GH3-TCHF-8
1.0 2
26
0.7 5
19
6600
-GH3-TCHF-10
1.1 0
28
0.9 4
23.8
6000
-GH3-TCHF-12
1.1 8
30
1.0 6
27
5900
-GH3-TCHF-16
1.4 2
36
1.3 0
33
5600
-GH3-TCHF-8mm
0.8 3
21
0.5 6
14.3
3800
-GH3-TCHF-10mm
0.9 4
24
0.6 9
17.5
3600
-GH3-TCHF-12mm
1.0 2
26
0.7 5
19
3560
-GH3-TCHF-14mm
1.0 2
26
0.8 2
20.8
3500
-GH3-TCHF-16mm
1.1 0
28
0.9 4
23.8
3160
-GH3-TCHF-18mm
1.1 8
30
1.0 6
27
2870
-GH3-TCHF-20mm
1.1 8
30
1.0 6
27
2700
-GH3-TCHF-25mm
1.4 2
36
1.3 0
33
2640
