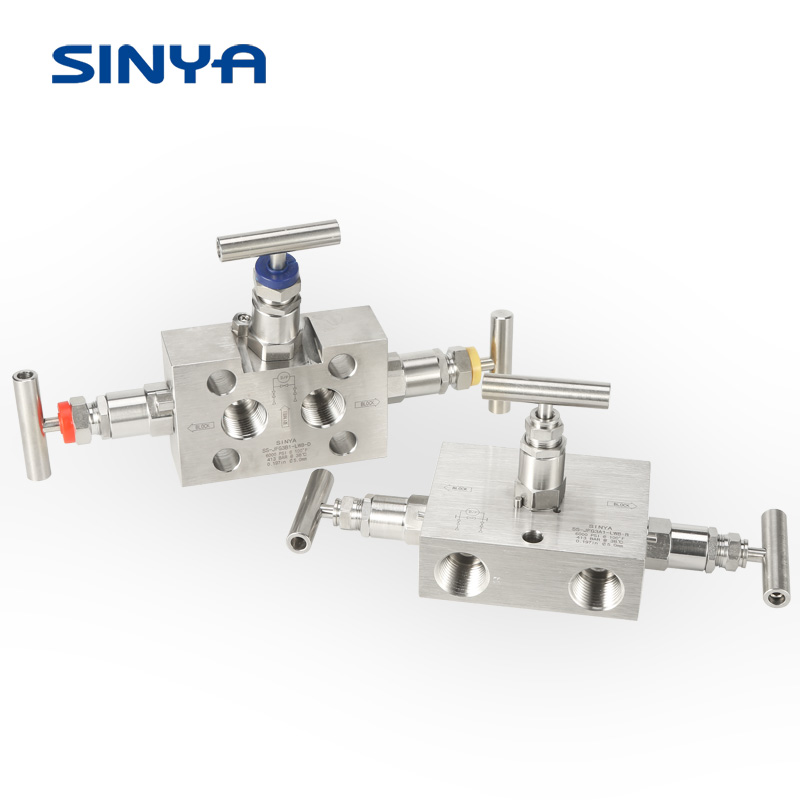

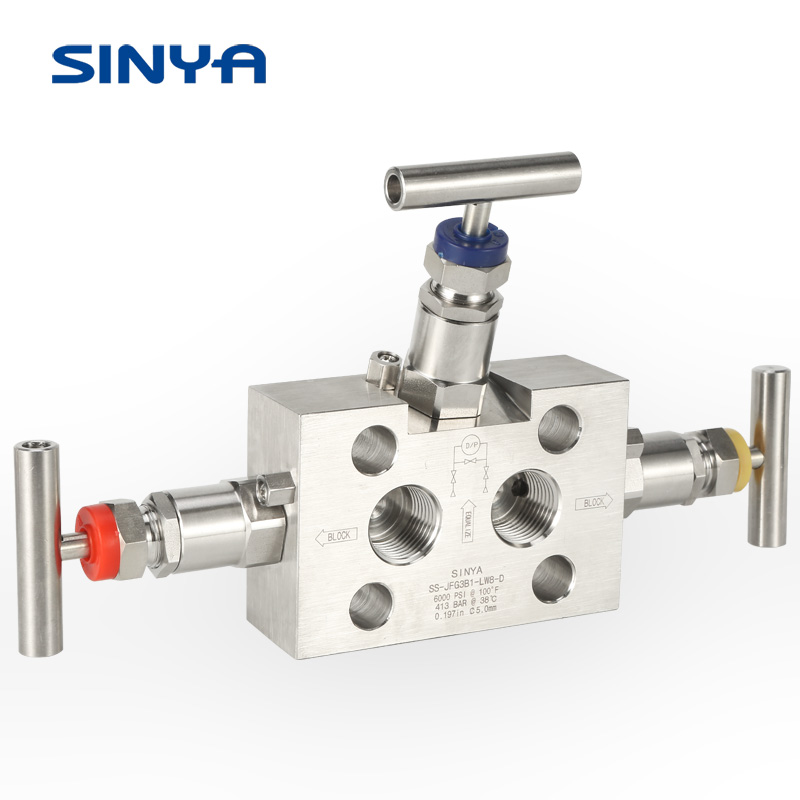

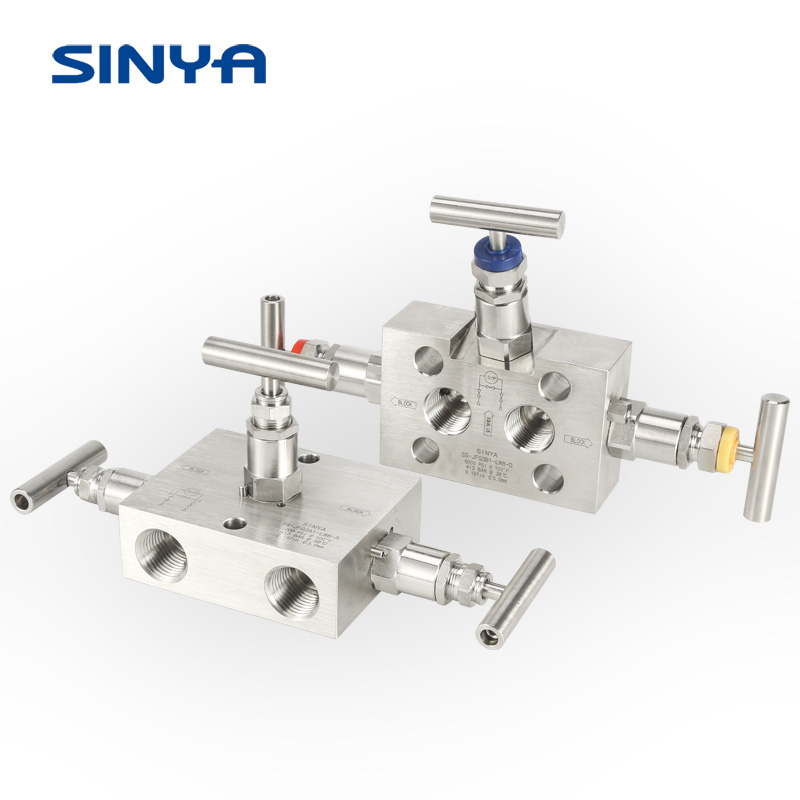

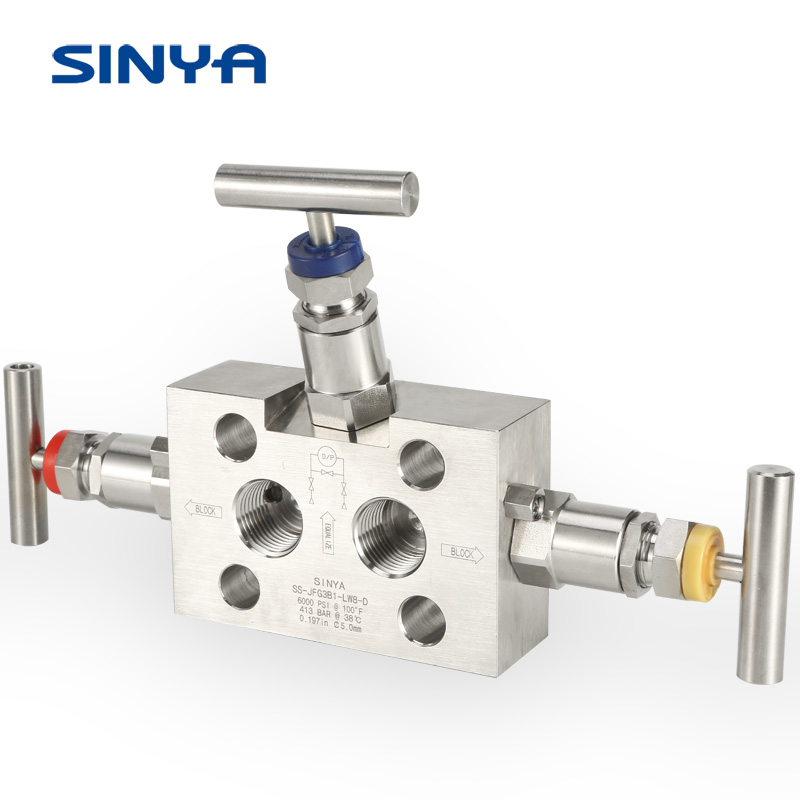

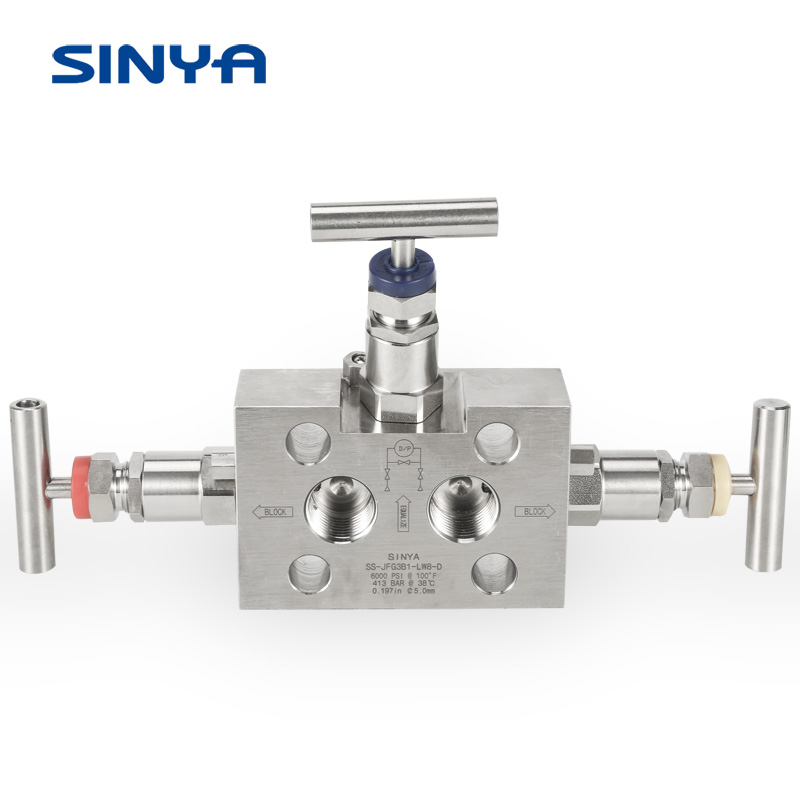

Stainless Steel Flange Direct Mounting Pressure Transmitter Instrumentation High Pressure Manifolds 3 Valve Manifold High Pressure Instrument Manifolds For Direct Mounting Three Valve Manifolds
|
1.Series valve manifolds are designed as 2-valve manifolds for static pressure and liquid level.3 -valve & 5-valve are designed for differential pressure. |
||||
|
2.Series valve manifolds are designed to be of horizontal type.The tube fittings of 1/2 in & Φ 12mm are used for manifolds connection by 1/2 infemale and flange (MSSSP-99). |
||||
|
3.Stainless steel pins are supplied accordingly between the bonnet and the valves ealing to prevent the bonnet dropping from the body. |
||||
|
4.Sealing gasket is not necessary since the body and the bonnet are sealed by metal to metal sealing. |
||||
|
5. One-piece designing can increase the strength. |
||||
|
6.The size of the center hole 2-1/8" in (54mm) is convenient for the instrument calibrating with flange connection. |
||||
|
7.Female tube fittings and NPT thread fittings are used for long-distance installation. |
|
|
||
|
|
|
|
|
|
|
|
