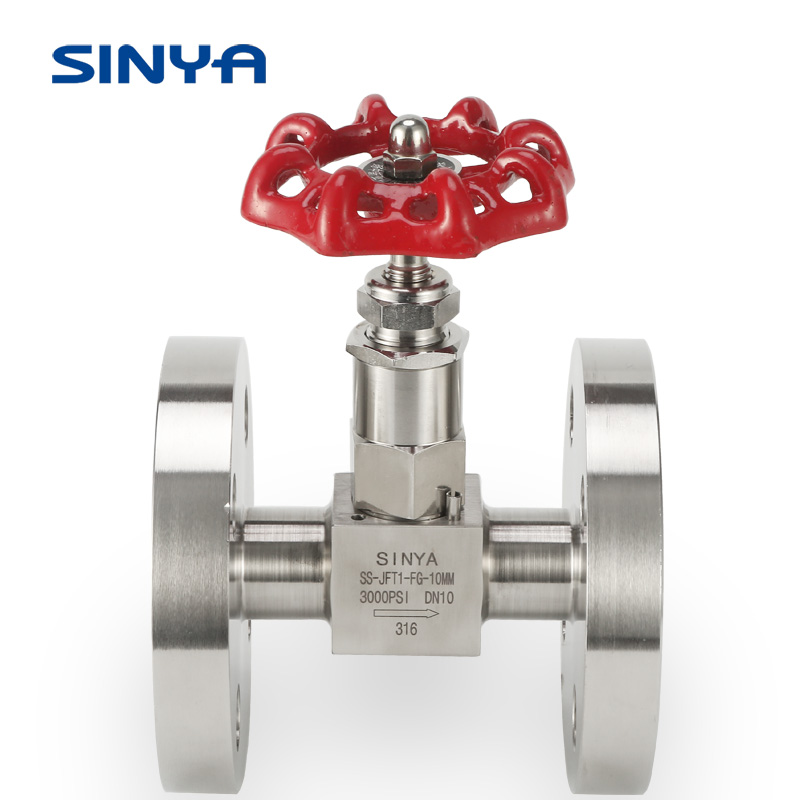

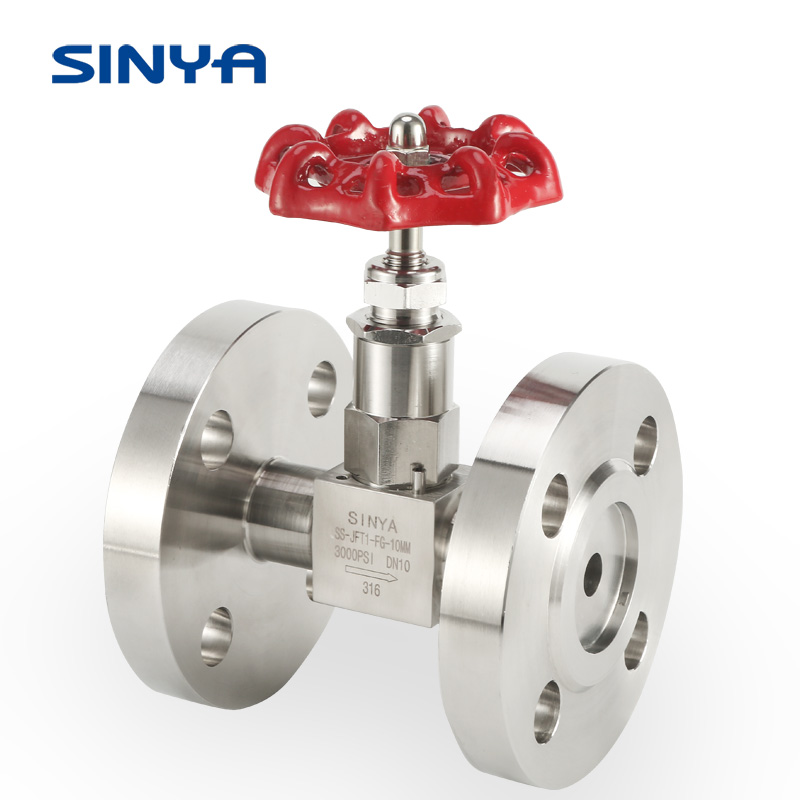

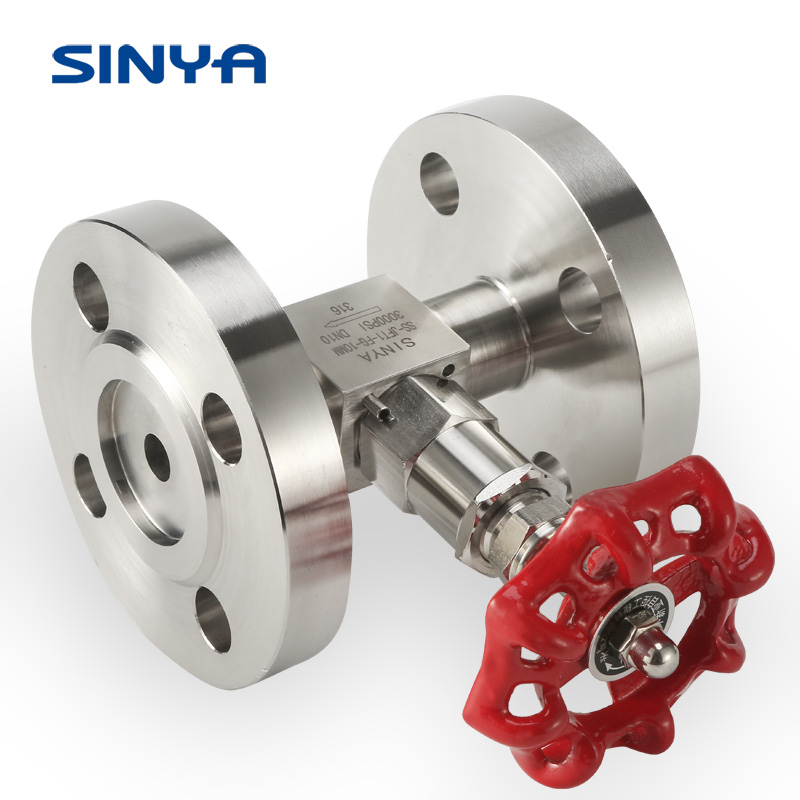

High Pressure Temperature B16.5 RF PTFE Packing Flange Globe Valve Metering Instrumentation Flange Needle Valve 1/8" to 3/4" with Handwheel Manual Shut-off Flanged Ends PTFE Packing



1、A dust-proof cap is supplied on the top of the stuffing box gland which can protect the stem thread from the outside impurities.

2、The stuffing filling is under the thread to effectively protect the lubricating grease from being brushed away.

3、The core and the stem is of lapped joint with the functions of up sealing.

4、Vertical hard sealing is used between the core and the body, also between the seat and the body.

5、Non-rotational ball-shaped stem head and adjustable stem head can be supplied.

6、Operating pressure can be up to 6000 psi (413bar).

7、Operating temperature: -53 to 232℃（-65 to 450 F）for PTFE sealing. -53 to 649℃（-65 to 1200 F ）for graphite sealing.



-JFT1 Flange Straight Valve

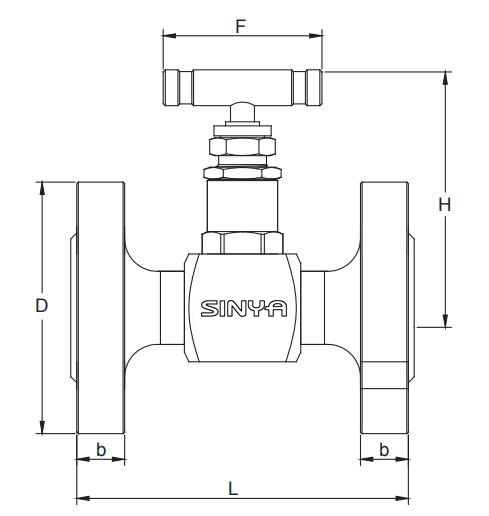

Order  information
DN
D
b
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JFT1-FG-3mm
0.12
3
2.76
70
0.59
15
-JFT1-FG-6mm
0.2 4
6
2.7 6
70
0.5 9
15
-JFT1-FG-10mm
0.3 9
10
3.7 4
95
0.7 9
20
-JFT1-FG-15mm
0.5 9
15
4.1 3
105
0.7 9
20

Order information
L
H
F
Pressure Class
(in)
(in)
(in)
(mm)
(in)
(mm)
≤
-JFT1-FG-3mm
4.72
120
3.9
99
2.99
76
32MPa
-JFT1-FG-6mm
4.7 2
120
3.9
99
2.9 9
76
32MPa
-JFT1-FG-10mm
7.0 9
180
3.98
101
2.9 9
76
32MPa
-JFT1-FG-15mm
8.2 7
210
6.22
158
3.9 4
100
32MPa
