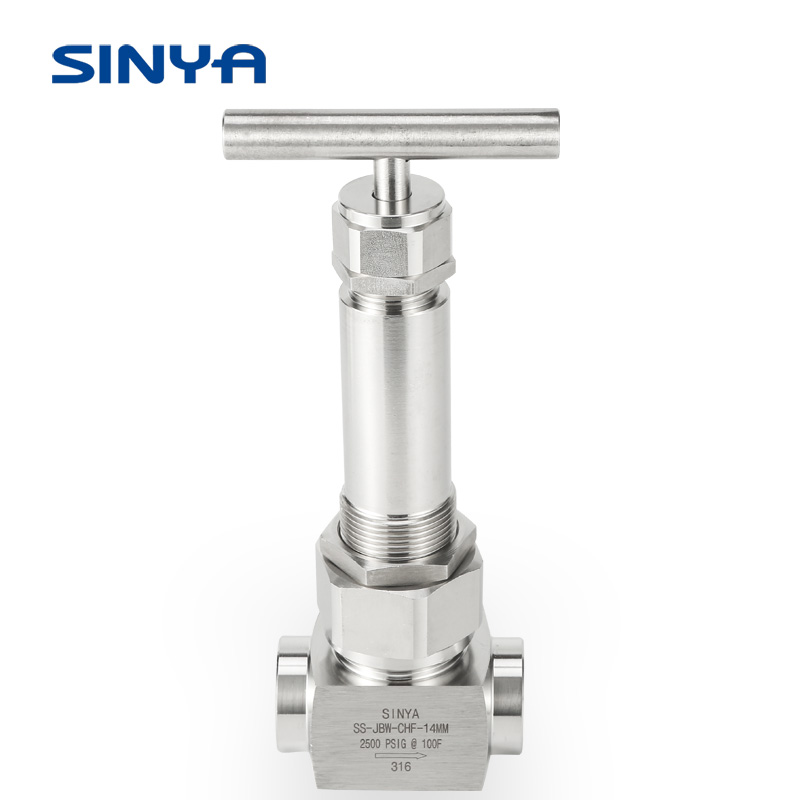

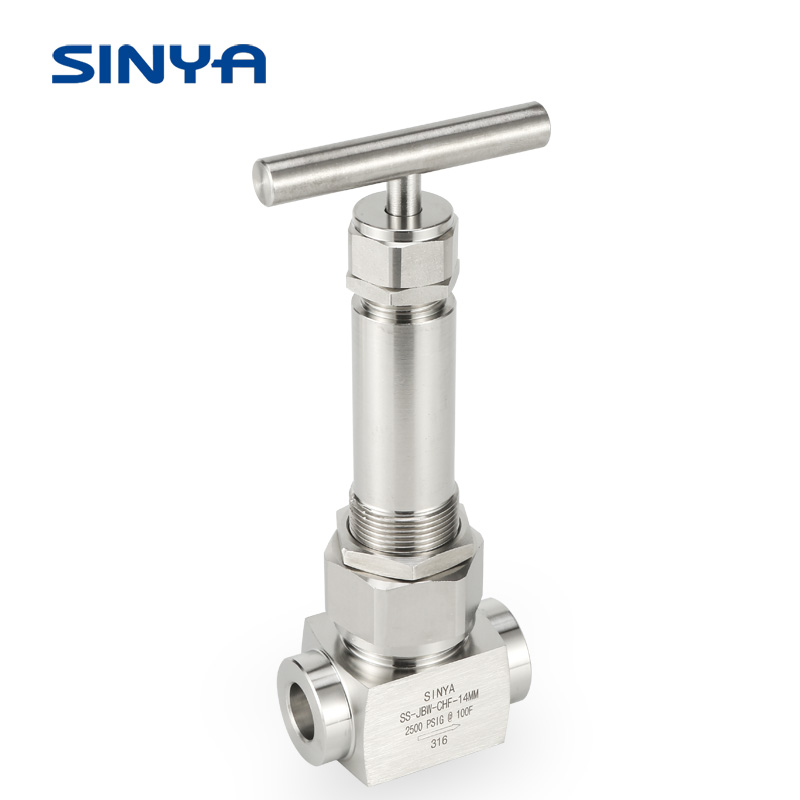

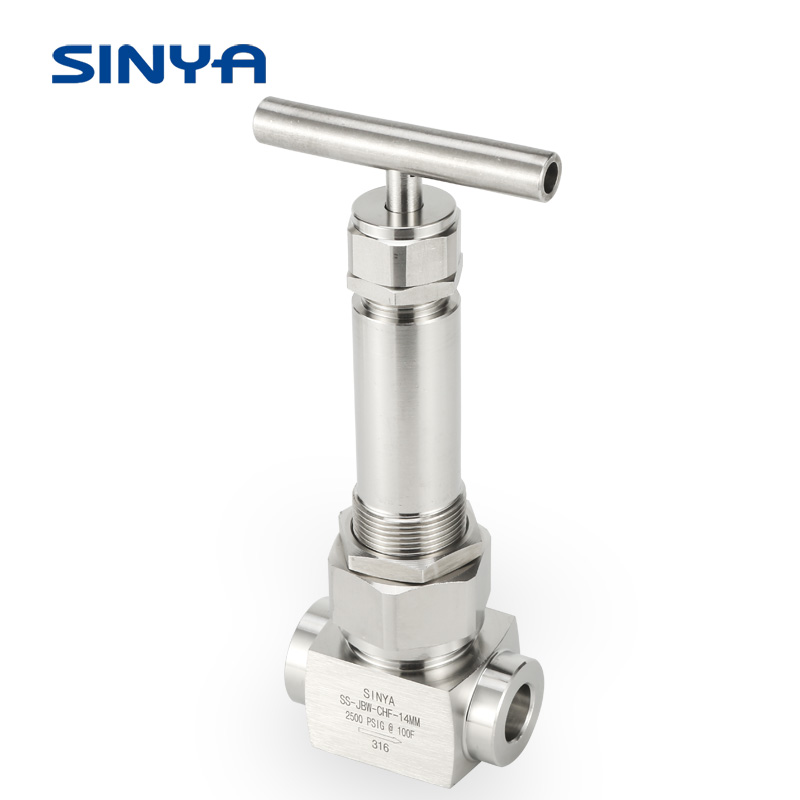

Stainless Steel 304L 316L SW Socket Weld Connetions 1/2 In. High Pressure ValveInstrument Bellows Seale Globe Valve High Purity 1/4 in. Metering 3/8 in. Tube Fitting1/2 in.





1.Stainless steel materials.

2.Temperatures up to648°C（1200°F）.

3.Compression ends, socket weld, gasket seal weld, butt weld, male thread, female thread etc.

4.Working pressures up to2500Psig (172bar).

5.With auxiliary seal system on bellows.

6.Gasket or weld valve bod are sealed to bellows.

7.Two seals structures Improve reliability, flexibility and safety, with auxiliary seal system prevent the valve from leaking even basic seal fails.

8.Close or adjust valve stem tip.

9.（Cv）0.36-5.3.
10.Various end connectios：xinya tube fittings1/4in(Φ6.35)-1/2in(Φ12.7)，and6-14mm.
Tubes socket weld1/4in(Φ6.35)-1/2in(Φ12.7)，and6-25mm.
Tubes butt weld 1/4in(Φ6.35)-1/2in(Φ12.7)，and6-25mm.
Gasket seal weld1/4in(Φ6.35)-1/2in(Φ12.7)，and6-25mm.

Female thread NPT(Rc)1/4-3/8.
Male thread NPT(R)1/4-1/2.

11.Panel mouting,bottom mounting and side mounting.

12.Stem tip can be changed to non-rotating ball stem tip and adjustable stem tip according to client’s requiment.

13.Upper packing can be as basic sealing,anxiliary seal for backup equipment.

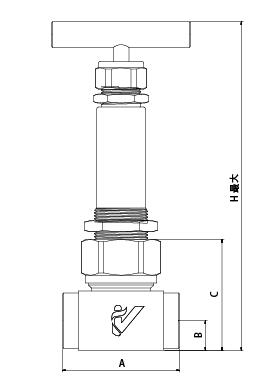

XYF-JBW-CHF butt weld connetions


Ordering Number
End connections size


DN（mm)

Size (mm)
Butt Weld (in)
H
B
C
A
-JBW-CHF-4
1/4
3
165
14.2
37.8
42.7
-JBW-CHF-6
3/8
6.5
165
14.2
37.8
42.7
-JBW-CHF-8
1/2
10
167
12.7
40.9
57.7
-JBW-CHF-12
3/4
10
167
12.7
40.9
57.7
Butt Weld (mm)
-JBW-CHF-6mm
6
3
165
14.2
37.8
42.7
-JBW-CHF-8mm
8
6.5
165
14.2
37.8
42.7
-JBW-CHF-10mm
10
6.5
165
14.2
37.8
42.7
-JBW-CHF-12mm
12
10
167
12.7
40.9
57.7
-JBW-CHF-14mm
14
10
167
12.7
40.9
62.2
-JBW-CHF-16mm
16
10
167
12.7
42.2
62.2
-JBW-CHF-25mm
25
10
167
12.7
42.2
71.2
