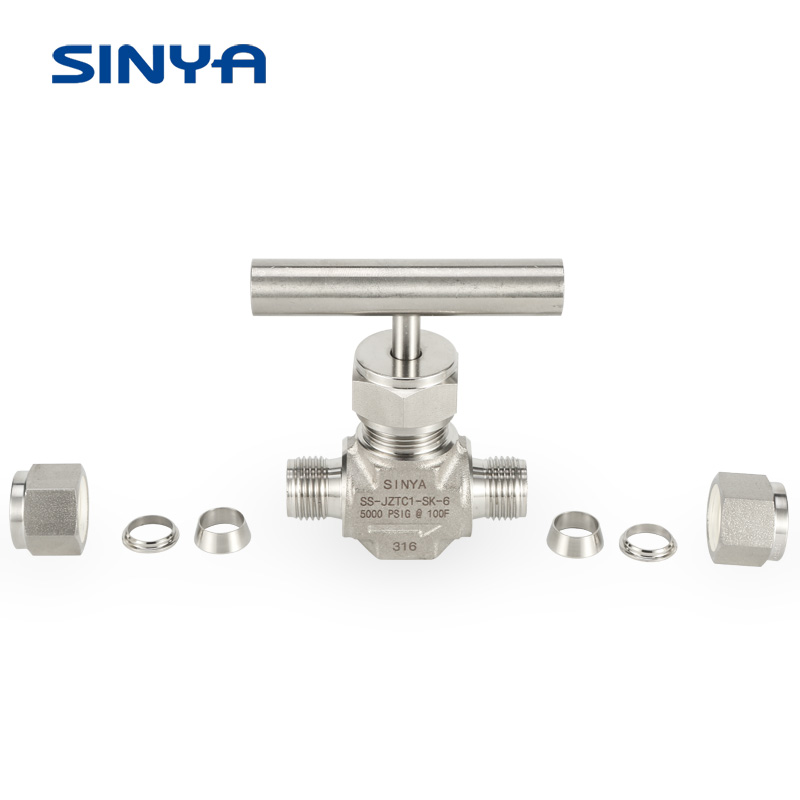

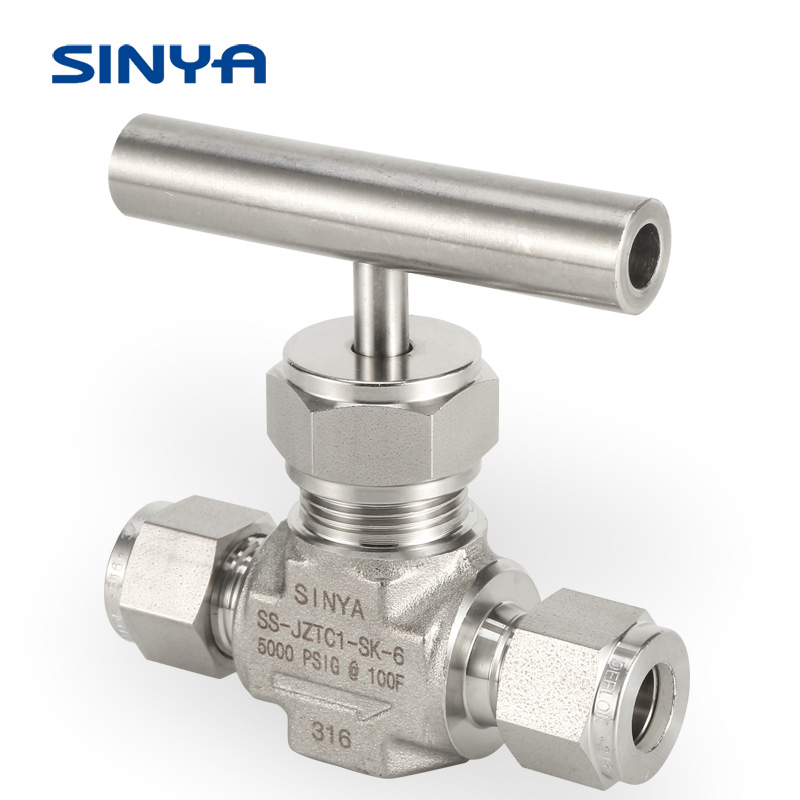

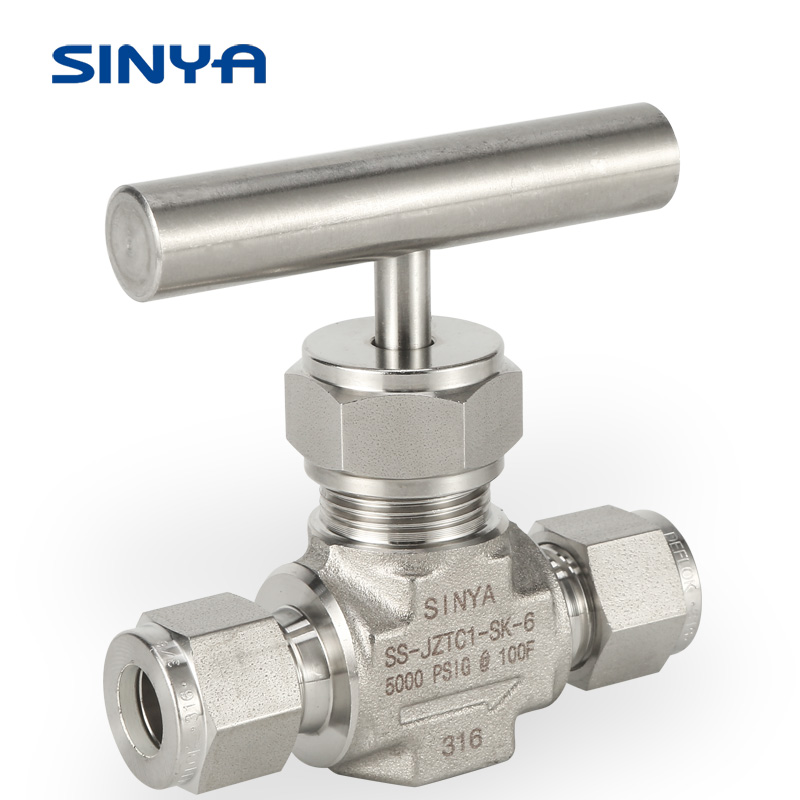

Stainless Steel 316/316L High Temperature 5000Psi Hydraulic Needle Flow Control Valve Two Ferrule Adjustable Small Needle Valve 6000 Psi Double Ferrule OD Tube Fitting 3/8 in. High Pressure 316 Forged







1.JZT series needle valves are a kind of instrument valves under high pressure.
2.Suitable for install on the instrument panel or without panels.
3.To execute the closing or shutting-off in the fluid system.
4.To control comparatively big flow with its compact structure.
5.Different kinds of stems for selection.
6.There are two kinds of structures for selection: straight way type & angletype.
7. Four types of hand wheels: ball-type, Round-type, bar metal and non-metal.
8.Working Pressure can be up to 6000PSI (413bar).
9.WorkingTemperature can be up to 315℃（600°F）.



-JZTC1 Straight Needle valve with ferrule

Order information
End Connection
Orifice
Flow
coefficient
A
(in)
(mm)
(in)
(mm)
(mm)
(in)
(mm)
-JZTC1-SK-2
1/8
3.17
0.08
2
0.09
1.89
48
-JZTC1-SK-4
1/4
6.35
0.125
3.2
0.21
2.46
62.5
-JZTC1-SK-6
3/8
9.52
0.25
6.4
0.73
3.08
78.2
-JZTC1-SK-8
1/2
12.7
0.25
6.4
0.73
3.3
83.8
-JZTC1-SK-12
3/4
19.05
0.25
6.4
0.73
3.39
86
-JZTC1-SK-3mm
0.118
3
0.08
2
0.09
1.89
48
-JZTC1-SK-6mm
0.236
6
0.125
3.2
0.21
2.36
60
-JZTC1-SK-8mm
0.315
8
0.125
3.2
0.21
2.46
62.5
-JZTC1-SK-10mm
0.374
10
0.25
6.4
0.73
3.08
78.2
-JZTC1-SK-12mm
0.472
12
0.25
6.4
0.73
3.3
83.8
-JZTC1-SK-14mm
0.551
14
0.25
6.4
0.73
3.3
83.8
-JZTC1-SK-18mm
0.709
18
0.25
6.4
0.73
3.39
86

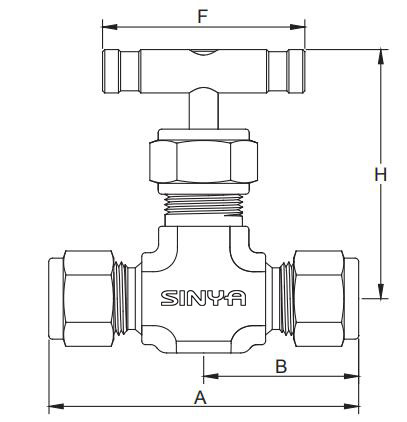

Order information
B
H
F
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JZTC1-SK-2
0.94
24.0
1.58
40.2
1.75
44.4
-JZTC1-SK-4
1.2 3
31.2
1.6 6
42.2
1.7 5
44.4
-JZTC1-SK-6
1.5 4
39.1
2.3 1
58.7
2.5 0
63.5
-JZTC1-SK-8
1.6 5
41.9
2.3 1
58.7
2.5 0
63.5
-JZTC1-SK-12
1.6 9
43.0
2.3 1
58.7
2.5 0
63.5
-JZTC1-SK-3mm
0.9 4
24.0
1.5 8
40.2
1.7 5
44.4
-JZTC1-SK-6mm
1.1 8
30.0
1.6 6
42.2
1.7 5
44.4
-JZTC1-SK-8mm
1.2 3
31.2
1.8 2
46.2
1.7 5
44.4
-JZTC1-SK-10mm
1.5 4
39.1
2.3 1
58.7
2.5 0
63.5
-JZTC1-SK-12mm
1.6 5
41.9
2.3 1
58.7
2.5 0
63.5
-JZTC1-SK-14mm
1.6 5
41.9
2.3 1
58.7
2.5 0
63.5
-JZTC1-SK-18mm
1.6 9
43.0
2.3 1
58.7
2.5 0
63.5
