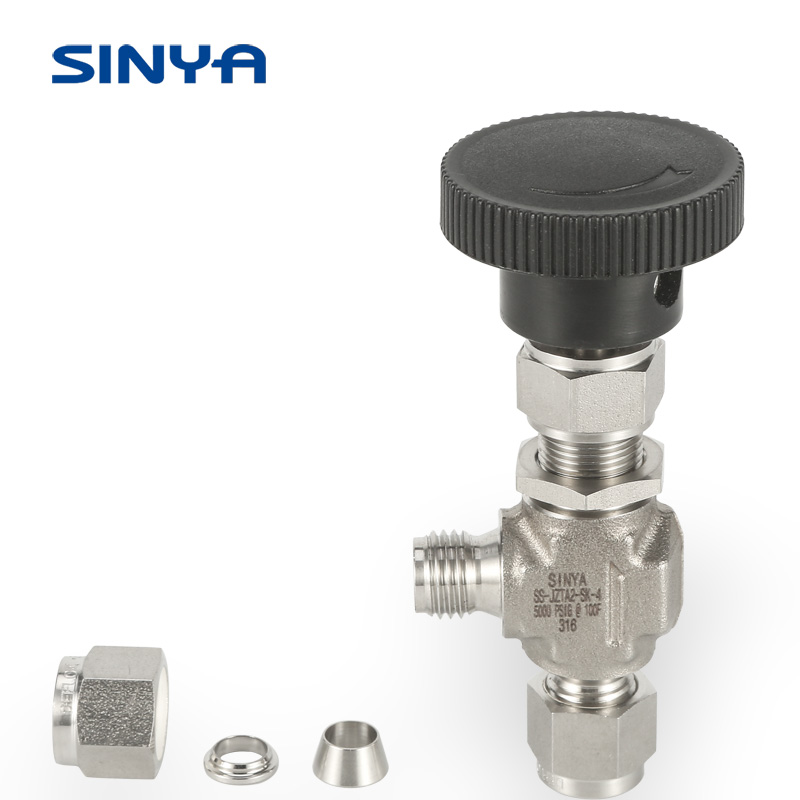

Mini 316 Stainless Steel 1/4" SS316 Panal Mounting Forged Integral Compression Angle Type Twin Ferrule Needle Valve 1/2" NPT SS 316 Needle Valve 2Way 90 angle Type 316 Mini Compression Twin Ferrule





1.JZT series needle valves are a kind of instrument valves under high pressure.
2.Suitable for install on the instrument panel or without panels.
3.To execute the closing or shutting-off in the fluid system.
4.To control comparatively big flow with its compact structure.
5.Different kinds of stems for selection.
6.There are two kinds of structures for selection: straight way type & angletype.
7. Four types of hand wheels: ball-type, Round-type, bar metal and non-metal.
8.Working Pressure can be up to 6000PSI (413bar).
9.WorkingTemperature can be up to 315℃（600°F）.



-JZTA2 Angle-type Needle Valve with ferrule

Order information
End Connection Size
Orifice
Flow coefficient
A
(in)
(mm)
(in)
(mm)
Cv
(in)
(mm)
-JZTA2-SK-2
1/8
3.17
0.080
2
0.09
0.99
25.1
-JZTA2-SK-4
1/4
6.35
0.172
4.4
0.37
1.14
29.0
-JZTA2 -SK-6
3/8
9.52
0.250
6.4
0.73
1.3
33.0
-JZTA2 -SK-8
1/2
12.70
0.375
9.5
1.8
1.4
35.6
-JZTA2 -SK-12
3/4
19.05
0.375
9.5
1.8
1.9
48.3
-JZTA2 -SK-3mm
0.118
3
0.080
2
0.09
0.99
25.1
-JZTA2 -SK-6mm
0.236
6
0.172
4.4
0.37
1.14
29.0
-JZTA2 -SK-8mm
0.315
8
0.172
4.4
0.37
1.3
33.0
-JZTA2 -SK-10mm
0.374
10.00
0.250
6.4
0.73
1.3
33.0
-JZTA2 -SK-12mm
0.472
12.00
0.375
9.5
1.8
1.4
35.6
-JZTA2 -SK-14mm
0.551
14.00
0.375
9.5
1.8
1.6
40.6
-JZTA2 -SK-18mm
0.709
18.00
0.375
9.5
1.8
1.9
48.3

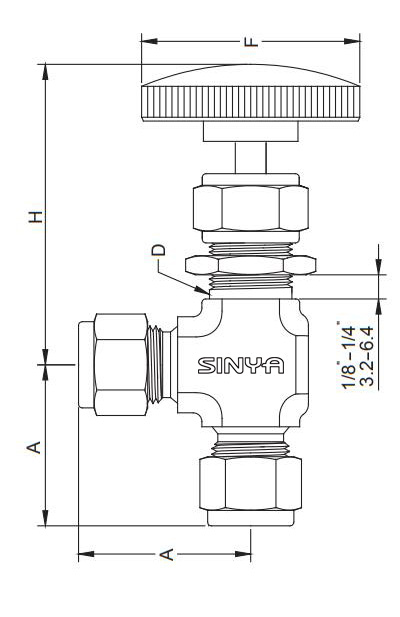

Order information
D
H
F
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JZTA2-SK-2
0.47
11.9
2.28
57.9
1.00
25.4
-JZTA2-SK-4
0.53
13.5
2.5 0
63.5
1.38
35.1
-JZTA2 -SK-6
0.78
19.8
2.9 7
75.4
1.8 8
47.8
-JZTA2 -SK-8
1.03
26.2
3.9 0
99.1
3
76.2
-JZTA2 -SK-12
1.03
26.2
3.9 0
99.1
3
76.2
-JZTA2 -SK-3mm
0.48
12.2
2.2 8
57.9
1
25.4
-JZTA2 -SK-6mm
0.53
13.5
2.5 0
63.5
1.38
35.1
-JZTA2 -SK-8mm
0.53
13.5
2.5 0
63.5
1.38
35.1
-JZTA2 -SK-10mm
0.78
19.8
2.9 7
75.4
1.88
47.8
-JZTA2 -SK-12mm
1.03
26.2
3.9 0
99.1
3
76.2
-JZTA2 -SK-14mm
1.03
26.2
3.9 0
99.1
3
76.2
-JZTA2 -SK-18mm
1.03
26.2
3.9 0
99.1
3
76.2
