HOME ꄲ Valves ꄲ Stainless steel 316/316L Alloy Twin Ferrule 2 Way Ball Valve, SS, 1/2'' Tube fitting Double Ferrule Tube End Ball Valve lock Device 1500 3000 PSI Alloy Instrument

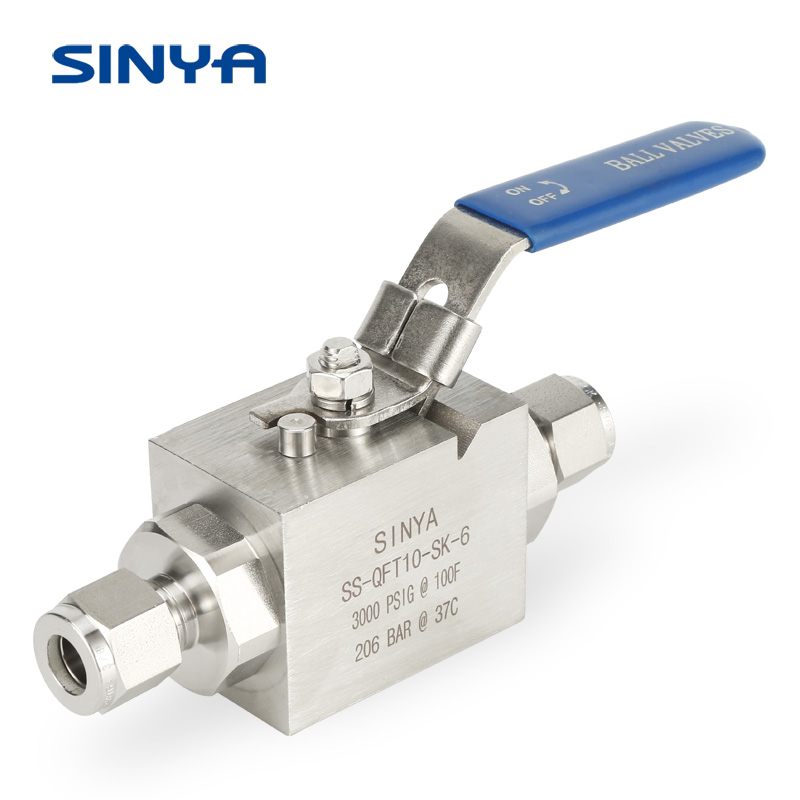

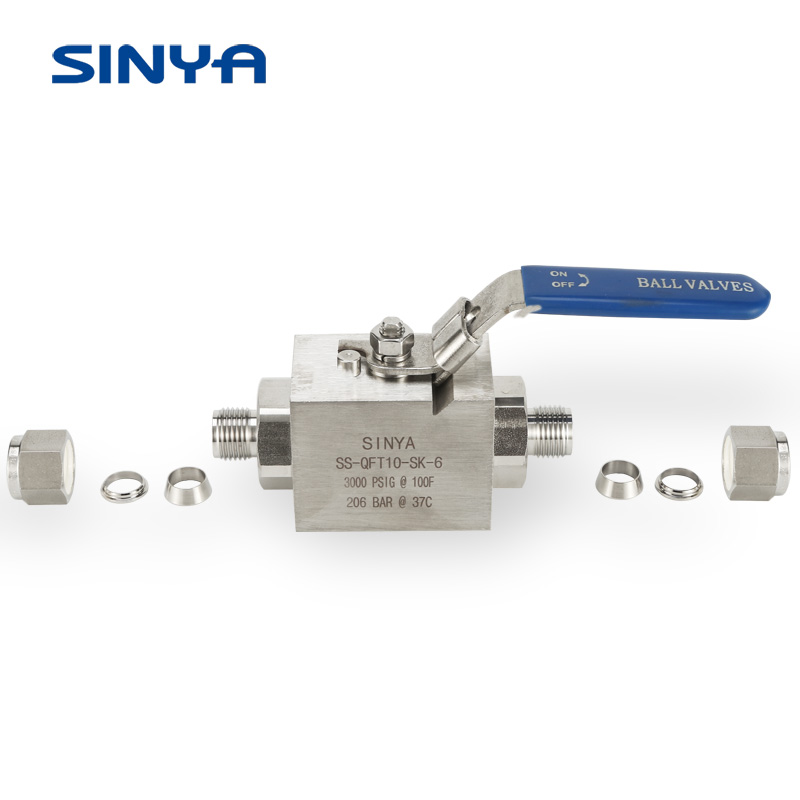

Stainless steel 316/316L Alloy Twin Ferrule 2 Way Ball Valve, SS, 1/2'' Tube fitting Double Ferrule Tube End Ball Valve lock Device 1500 3000 PSI Alloy Instrument

1.Size 1/8~1" and 3~25mm end connection
2.Working temperature:-17℃ to 232℃
3.Material grades: SS 304/304L ,SS 316/316L,Alloy.
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve.
5.Zero leakage even under tough working conditions.
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online.
7.The medium is of bidirectional flow and can be installed on plates or pads.
8.Available in wide variety of configurations.

-QFT10-SK Closedown ball valve with ferrules

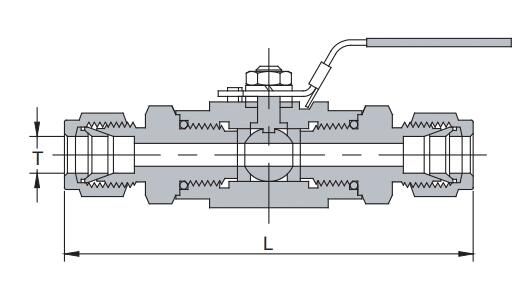

Order information	T	L		Orifice
Order information	OD	(in)	(mm)	(in)	(mm)
-QFT10-SK-4	1/4in	3.54	90	0.2	5
-QFT10-SK-6	3/8in	3.5 4	90	0.2 8	7
-QF T10-SK-8	1/2in	3.7 4	95	0.3 5	9
-QF T10-SK-12	3/4in	4.4 1	112	0.4 7	12
-QF T10-SK-16	1in	5.1 2	130	0.5 9	15
-QF T10-SK-6mm	6mm	3.5 4	90	0.2 0	5
-QF T10-SK-8mm	8mm	3.5 4	90	0.2 8	7
-QF T10-SK-10mm	10mm	3.7 4	95	0.3 5	9
-QF T10-SK-12mm	12mm	3.8 6	98	0.4 7	12
-QF T10-SK-14mm	14mm	3.8 6	98	0.4 7	12
