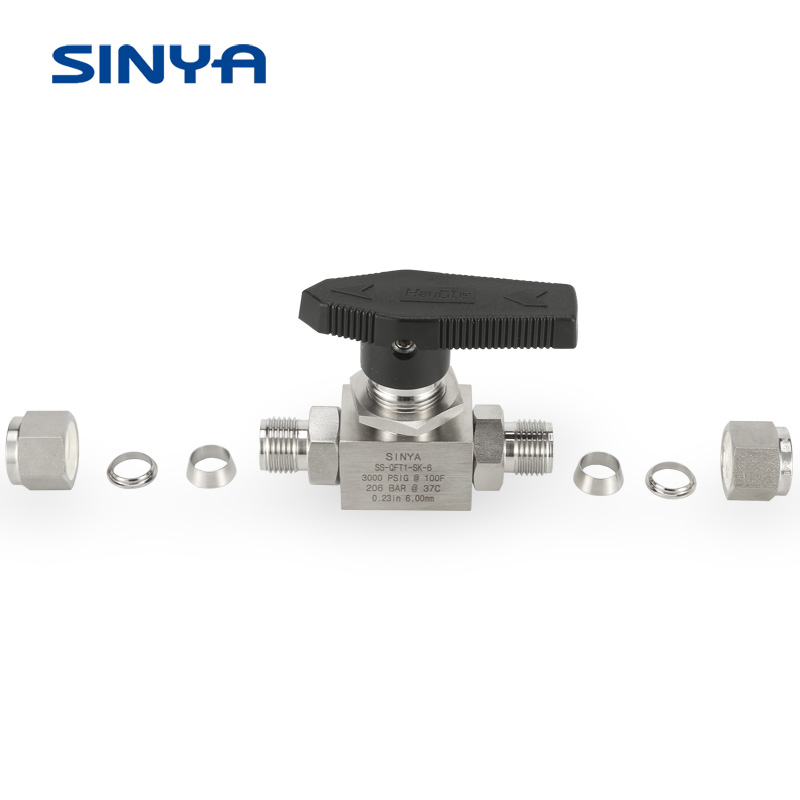

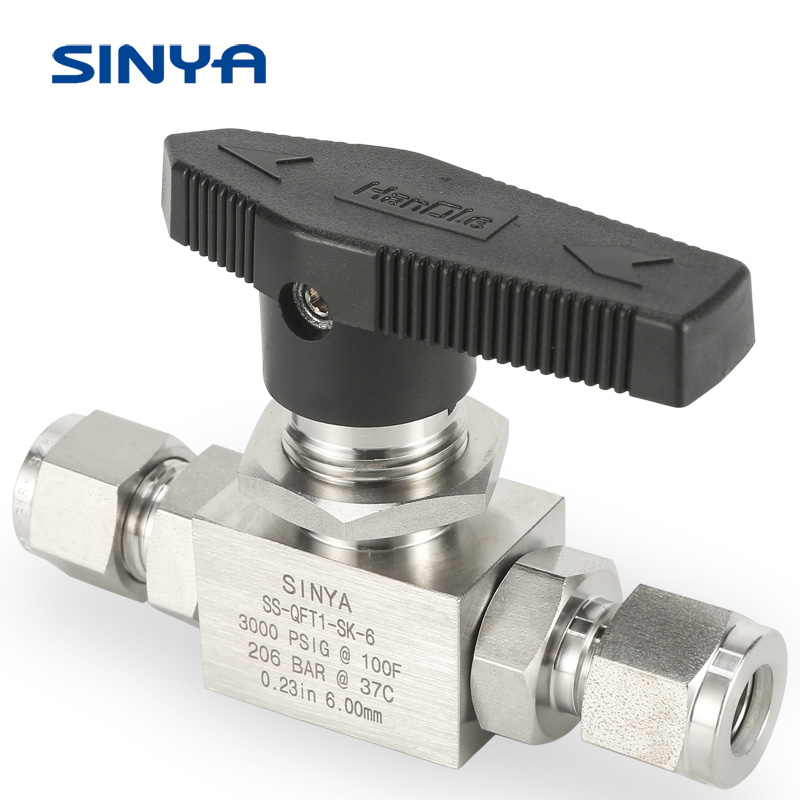

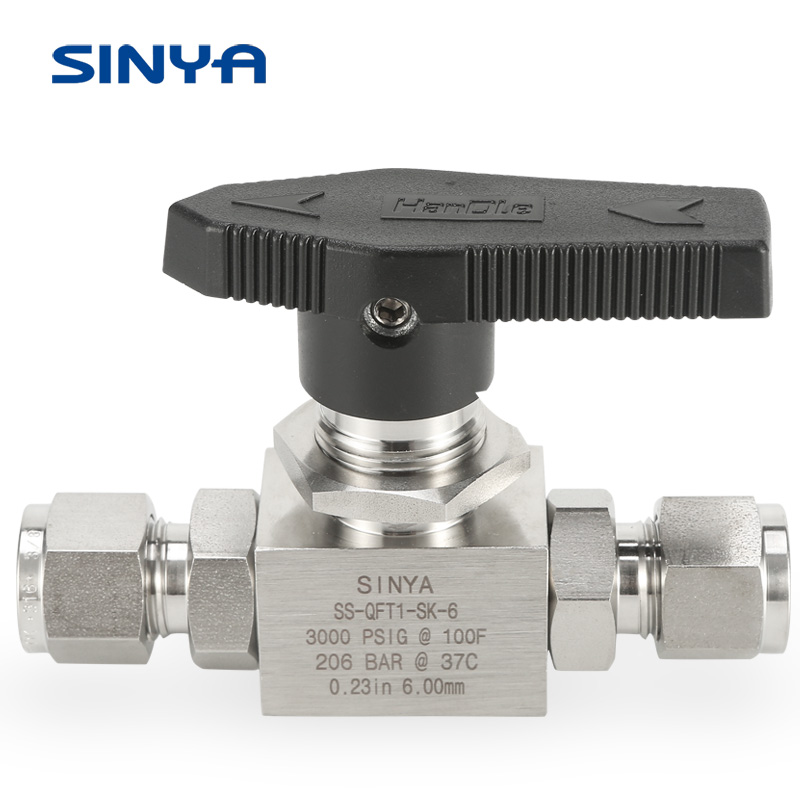

Instrumentation Double Ferrule Straight Type Ball Valve High Pressure PTFE PFA PEEK Compression3000 6000psi Stainless Steel 316 Ss 6000 psi Nut on Both Sides 1/4"





1.Size 1/8~1" and 3~25mm end connection
2.Working temperature:-17℃ to 232℃
3.Material grades: SS 304/304L ,SS 316/316L,Alloy.
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve.
5.Zero leakage even under tough working conditions.
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online.
7.The medium is of bidirectional flow and can be installed on plates or pads.
8.Available in wide variety of configurations.



-QFT1-SK Straight type valve with ferrules

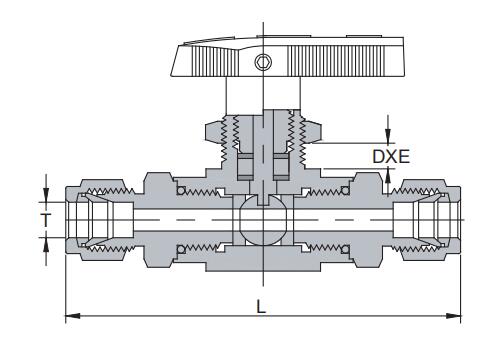

Order information
T
L
D×E
Orifice
OD
(in)
(mm)
(mm)
(in)
(mm)
-QFT1-SK-2
1/8in
2.83
72
16×6.4
0.093
2.4
-QFT1-SK-4
1/4in
3.31
84
16×6.4
0.1 70
4.2
-QFT1-SK-6
3/8in
3.78
96
20×6.4
0.2 50
6.4
-QFT1-SK-8
1/2in
4.09
104
23×9.7
0.4 10
10.3
-QFT1-SK-12
3/4in
4.41
112
23×9.7
0.4 10
10.3
-QFT1-SK-3mm
3mm
2.83
72
16×6.4
0.0 93
2.4
-QFT1-SK-4mm
4mm
2.83
72
16×6.4
0.0 93
2.4
-QFT1-SK-6mm
6mm
3.31
84
16×6.4
0.1 70
4.2
-QFT1-SK-8mm
8mm
3.78
96
16×6.4
0.1 70
4.2
-QFT1-SK-10mm
10mm
3.78
96
20×6.4
0.2 50
6.4
-QFT1-SK-12mm
12mm
4.09
104
20×6.4
0.2 50
6.4
-QFT1-SK-14mm
14mm
4.09
104
23×9.7
0.4 10
10.3
-QFT1-SK-16mm
16mm
4.09
104
23×9.7
0.4 10
10.3
-QFT1-SK-18mm
18mm
4.41
112
23×9.7
0.4 10
10.3
-QFT1-SK-20mm
20mm
4.41
112
23×9.7
0.4 10
10.3
