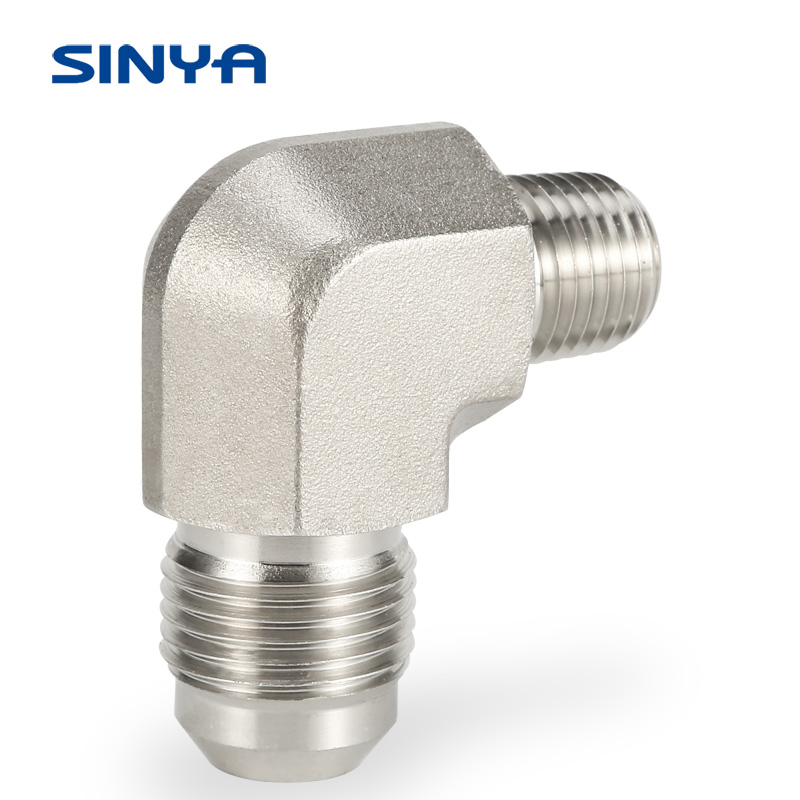

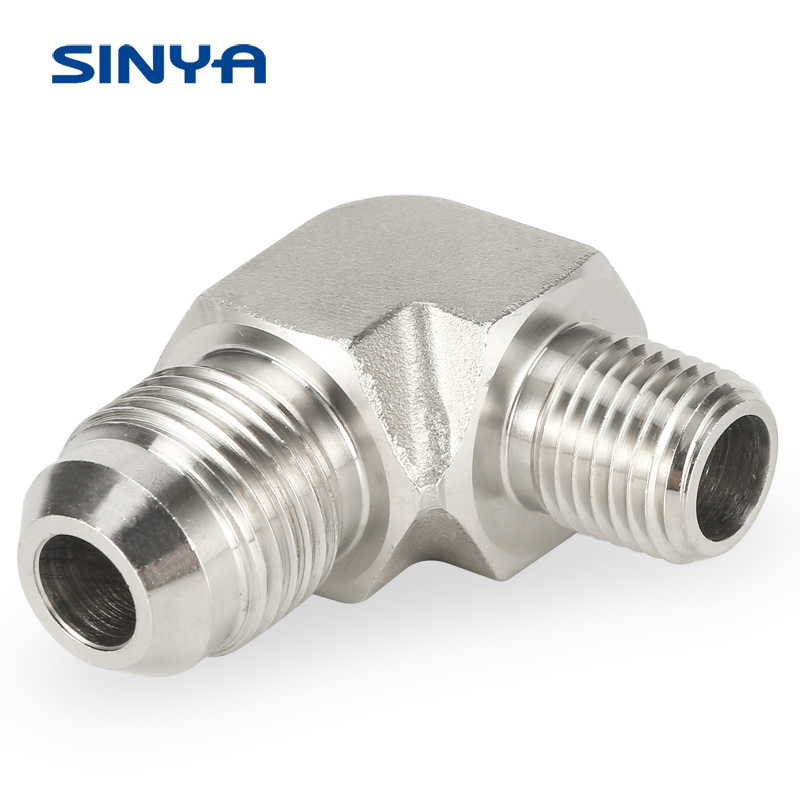

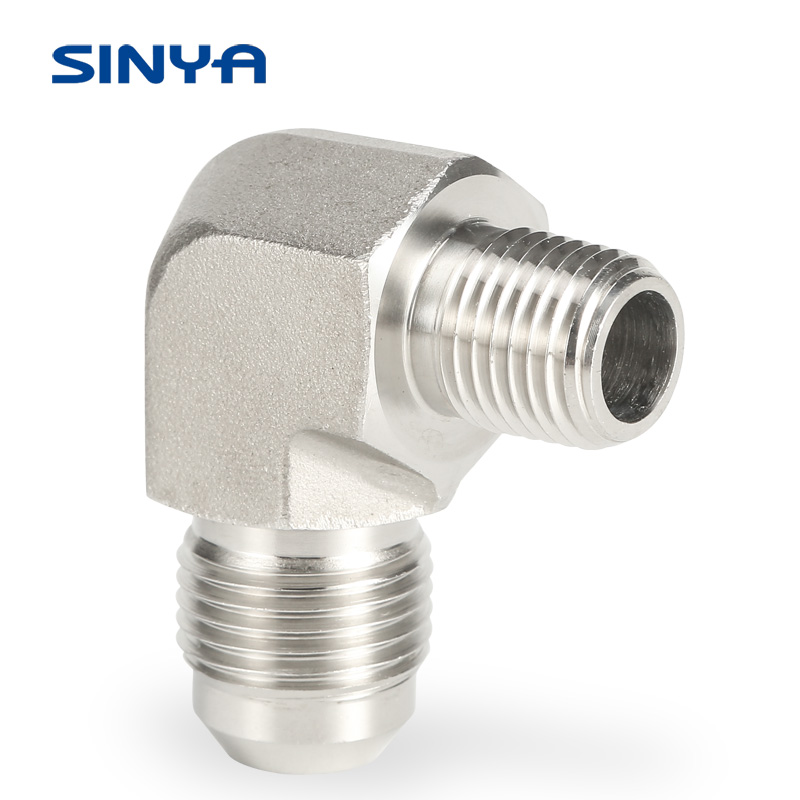

Stainless Steel 1/8 Hydraulic Adaptor JIC compression tube fittings NPT to JIC 316l JIC Flared 37 Tube Fittings Male Elbow Flare Twin Fitting Steel Ferrule Fittings Manufacturer Forged







If required, see SAE Standard J514 for a complete list of dimnesions. NPT Tapered Pipe Threads meet the requirements of ASME/ANSI B.I.20.1.

All 37° Flared tube fittings-3 piece tube assembly, can be used with metric tube by using a metric 37° sleeve, instead of an inch sleeve. Each dimension table shows which metric sleeve should be used for every size.

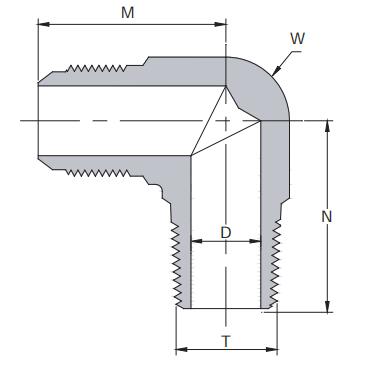

-KK2 Male Elbow Connector

Order information
Tubing OD
T
D
(in)
(mm)
(NPT)
(in)
(mm)
-KK2-2-2
1/8
-
1/8
0.062
1.6
-KK2-3-2
3/16
-
1/8
0.125
3.2
-KK2 -4-2
1/4
6
1/8
0.172
4.4
-KK2 -4-4
1/4
6
1/4
0.172
4.4
-KK2 -5-2
5/16
8
1/8
0.190
4.8
-KK2 -5-4
5/16
8
1/4
0.234
6
-KK2 -6-2
3/8
10
1/8
0.190
4.8
-KK2 -6-4
3/8
10
1/4
0.280
7.1
-KK2 -6-6
3/8
10
3/8
0.297
7.5
-KK2 -6-8
3/8
10
1/2
0.297
7.5
-KK2 -8-4
1/2
12
1/4
0.280
7.1
-KK2 -8-6
1/2
12
3/8
0.380
9.5
-KK2 -8-8
1/2
12
1/2
0.391
9.9
-KK2 -8-12
1/2
12
3/4
0.391
9.9
-KK2 -10-6
5/8
16
3/8
0.380
9.5
-KK2 -10-8
5/8
16
1/2
0.470
11.9
-KK2 -10-12
5/8
16
3/4
0.484
12.3
-KK2 -12-8
3/4
18
1/2
0.470
11.9
-KK2 -12-12
3/4
18
3/4
0.69
15.5
-KK2 -14-12
7/8
20
3/4
0.719
18.3
-KK2 -16-12
1
25
3/4
0.719
18.3
-KK2 -16-16
1
25
1
0.844
21.5
-KK2 -20-16
1 1/4
32
1
0.844
21.5
-KK2 -20-20
1 1/4
32
1 1/4
1.078
27.5
-KK2 -24-24
1 1/2
38
1 1/2
1.312
33
-KK2 -32-32
2
-
2
1.781
45

Order information
W
M
N
(in)
(in)
(mm)
(in)
(mm)
-KK2-2-2
7/16
0.77
19.6
0.72
18.3
-KK2-3-2
1/2
0.83
21.1
0.7 2
18.3
-KK2 -4-2
1/2
0.89
22.6
0.7 8
19.8
-KK2 -4-4
5/8
1.06
26.9
1.0 9
27.7
-KK2 -5-2
5/8
0.95
24.1
0.7 8
19.8
-KK2 -5-4
5/8
1.06
26.9
1.0 9
27.7
-KK2 -6-2
5/8
1.06
26.9
0.9 0
22.8
-KK2 -6-4
5/8
1.06
26.9
1.0 9
27.7
-KK2 -6-6
13/16
1.14
29
1.2 2
31
-KK2 -6-8
15/16
1.23
31.2
1.4 7
37.3
-KK2 -8-4
15/16
1.25
31.8
1.2 2
31
-KK2 -8-6
15/16
1.25
31.8
1.2 2
31
-KK2 -8-8
15/16
1.33
33.7
1.4 7
37.3
-KK2 -8-12
11/8
1.42
36
1.5 9
40.4
-KK2 -10-6
15/16
1.45
36.8
1.3 0
33
-KK2 -10-8
15/16
1.45
36.8
1.4 7
37.3
-KK2 -10-12
11/8
1.53
38.9
1.5 9
40.4
-KK2 -12-8
11/8
1.66
41
1.5 9
40.4
-KK2 -12-12
11/8
1.66
41
1.5 9
40.4
-KK2 -14-12
13/8
1.73
43.9
1.6 9
42.9
-KK2 -16-12
13/8
1.81
46
1.7 8
45.2
-KK2 -16-16
13/8
1.81
46
1.9 7
50
-KK2 -20-16
111/16
2.06
52.3
2.3 5
59.6
-KK2 -20-20
111/16
2.06
52.3
2.3 8
60.5
-KK2 -24-24
2
2.33
59.2
2.6 4
67.1
-KK2 -32-32
25/8
3.06
77.7
3.0 0
76.2
