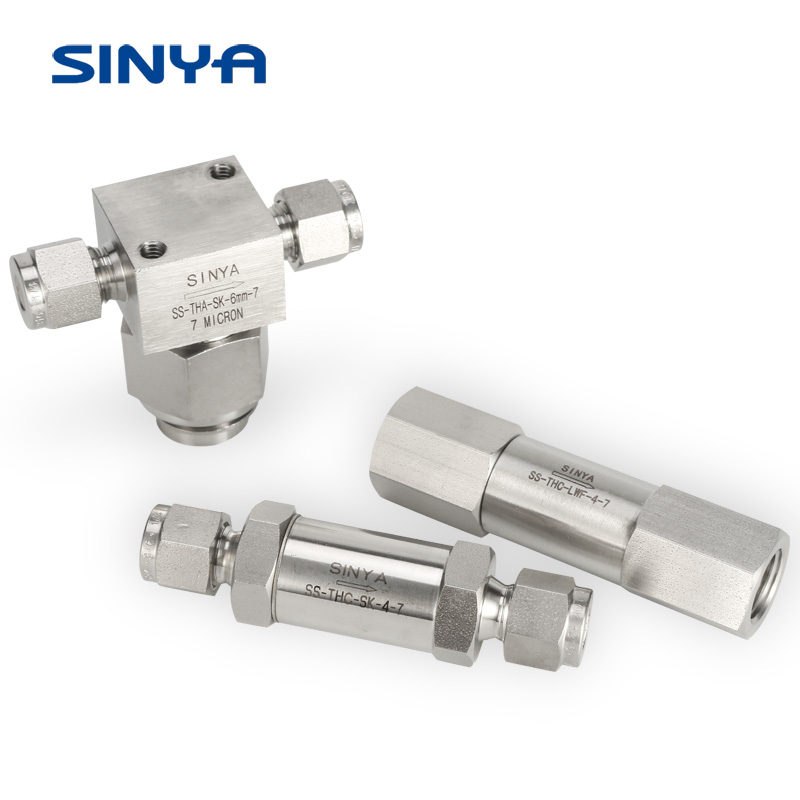

High Pressure Air Liquid Stainless steel 316/316L 0.5um 2um 7um 15um 60um 90um Micron Instrumenation Tee Filter Instrumentation Valves Pipe Tube Fttings T Type 15 Micron 1/4 Inch





1.316 stainless steel and brass.
2.There are two kinds of filtering elements: sintered & strainer type.
3.The filtering accuracy of the filtering element would be six classes: 0.5, 2, 7, 15, 60 & 90 μm.
4.Some other kinds of filtering elements can be supplied according to the customer's requirement.
5.Pressure g rade: 6000 psi for 316 stainless steel and 2000 psi for brass.
 6.Variety of end connections.
7. Each and every filters are tested at the factory.

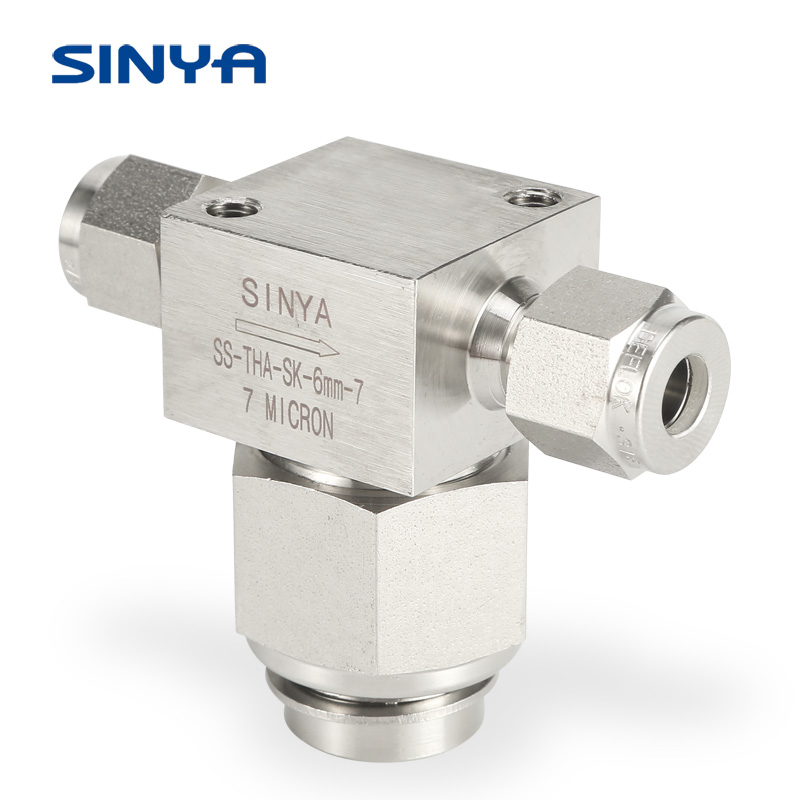

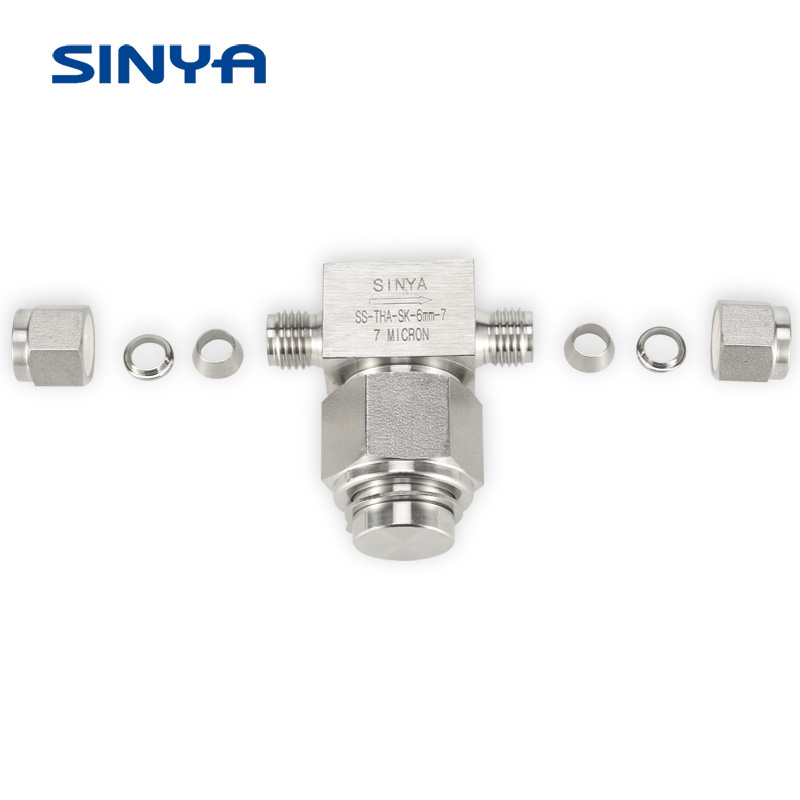

-THA T-type Filter

Order information
End Connection Size
L
H
in
mm
mm
mm
-THA-SK-2
1/8
3.2
57
47.5
-THA-SK-4
1/4
6.4
63
47.5
-THA-SK-6
3/8
9.5
72
56
-THA-SK-8
1/2
12.7
77
56
-THA-SK-6mm
0.24
6
63
47.5
-THA-SK-8mm
0.32
8
72
56
-THA-SK-10mm
0.39
10
72.5
56
-THA-SK-12mm
0.47
12
77
56
-THA-LWF-2
NPT1/8
51
47.5
-THA-LWF-4
NPT1/4
54
47.5
-THA-LWF-6
NPT3/8
54
47.5
-THA-LWM-4
NPT1/4
54
47.5
-THA-LWM-6
NPT3/8
60
56
-THA-LWM-8
NPT1/2
70
56
-THA T-type Filter

Order information
B
D
W
in
mm
in
mm
in
mm
-THA-SK-2
0.39
9.8
1.00
25.4
1.00
25.4
-THA-SK-4
0.39
9.8
1.00
25.4
1.00
25.4
-THA-SK-6
0.46
11.6
1.13
28.8
1.13
28.8
-THA-SK-8
0.46
11.6
1.13
28.8
1.13
28.8
-THA-SK-6mm
0.39
9.8
1.00
25.4
1.00
25.4
-THA-SK-8mm
0.46
11.6
1.00
25.4
1.00
25.4
-THA-SK-10mm
0.46
11.6
1.13
28.8
1.13
28.8
-THA-SK-12mm
0.46
11.6
1.13
28.8
1.13
28.8
-THA-LWF-2
0.39
9.8
1.00
25.4
1.00
25.4
-THA-LWF-4
0.39
9.8
1.00
25.4
1.00
25.4
-THA-LWF-6
0.39
9.8
1.00
25.4
1.00
25.4
-THA-LWM-4
0.39
9.8
1.00
25.4
1.00
25.4
-THA-LWM-6
0.46
11.6
1.13
28.8
1.13
28.8
-THA-LWM-8
0.46
11.6
1.13
28.8
1.13
28.8
