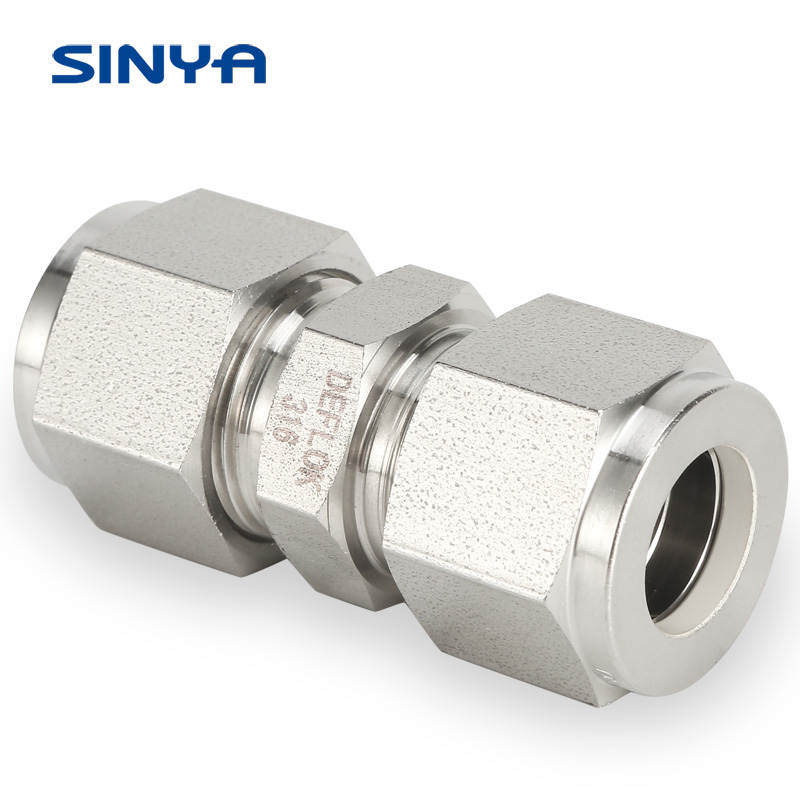

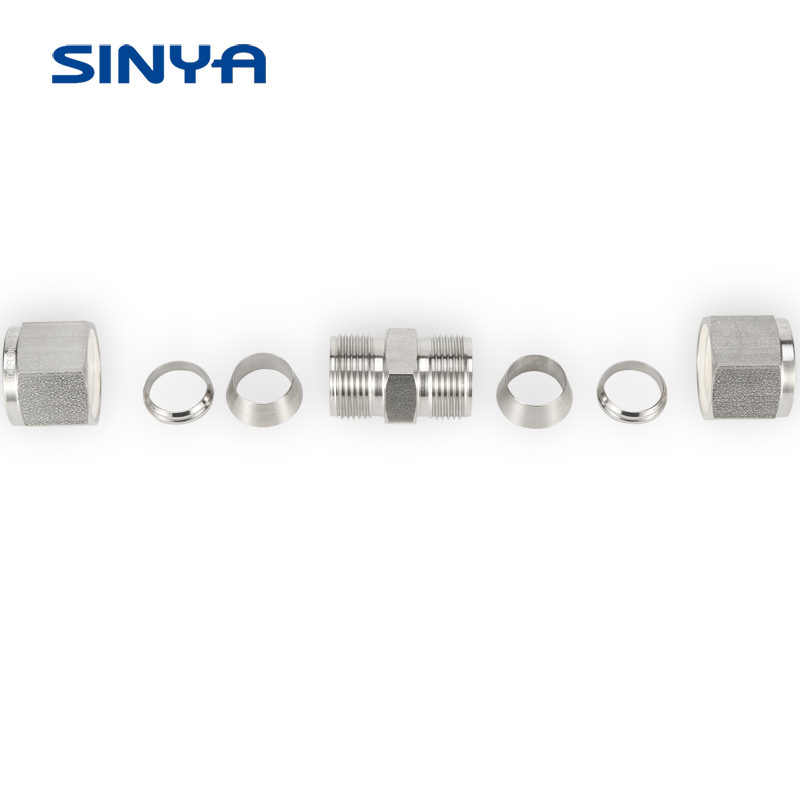

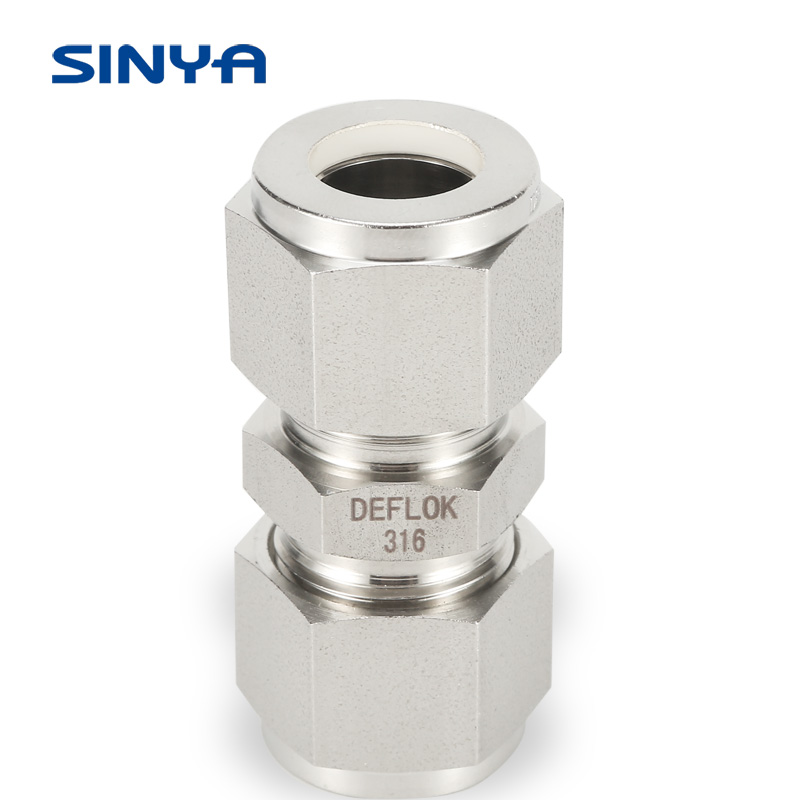

Tube OD Tube Fittings Stainless Steel Double Ferrule Union Coupling Compression Straight Union Connector Instrumentation Tubing Union Fitting tube to tube union





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.



-SK6 Union (in)

Order information

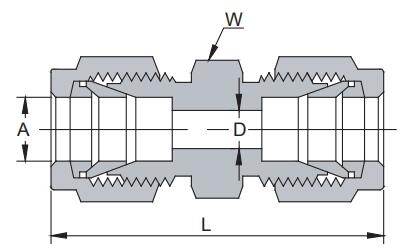

A
D
W
L
in
mm
mm
in
mm
mm
-SK6-1
1/16
1.58
1.27
5/16
7.93
25.14
-SK6-2
1/8
3.17
2.28
7/16
11.11
35.56
-SK6-3
3/16
4.76
3.04
7/16
11.11
37.33
-SK6-4
1/4
6.35
4.82
1/2
12.70
40.89
-SK6-5
5/16
7.93
6.35
9/16
14.28
42.90
-SK6-6
3/8
9.52
7.11
5/8
15.87
44.95
-SK6-8
1/2
12.70
10.41
13/16
20.63
51.30
-SK6-10
5/8
15.87
12.70
15/16
23.81
52.07
-SK6-12
3/4
19.05
15.74
11/16
26.98
53.59
-SK6-14
7/8
22.22
18.28
13/16
30.16
55.11
-SK6-16
1
25.40
22.35
13/8
34.92
64.77
-SK6-20
11/4
31.75
27.70
13/4
44.45
92.20
-SK6-24
11/2
38.10
34.00
21/8
53.97
107.95
-SK6 Union (mm)

Order information
A
D
W
L
mm
mm
mm
mm
-SK6-2mm
2
1.7
12
35.2
-SK6-3mm
3
2.4
12
35.3
-SK6-4mm
4
2.4
12
36.5
-SK6-6mm
6
4.8
14
41.0
-SK6-8mm
8
6.4
15
43.2
-SK6-10mm
10
7.9
18
45.9
-SK6-12mm
12
9.5
22
51.2
-SK6-14mm
14
11.1
24
52.0
-SK6-15mm
15
11.9
24
52.0
-SK6-16mm
16
12.7
24
52.0
-SK6-18mm
18
15.1
27
53.5
-SK6-20mm
20
15.9
30
55.0
-SK6-22mm
22
18.3
30
55.0
-SK6-25mm
25
21.8
35
65.0
