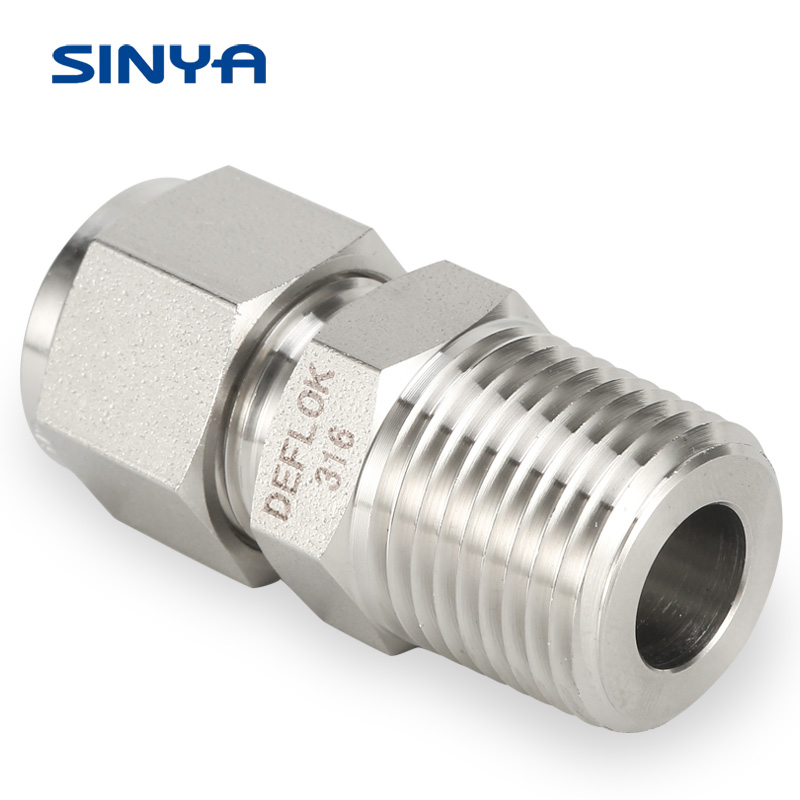

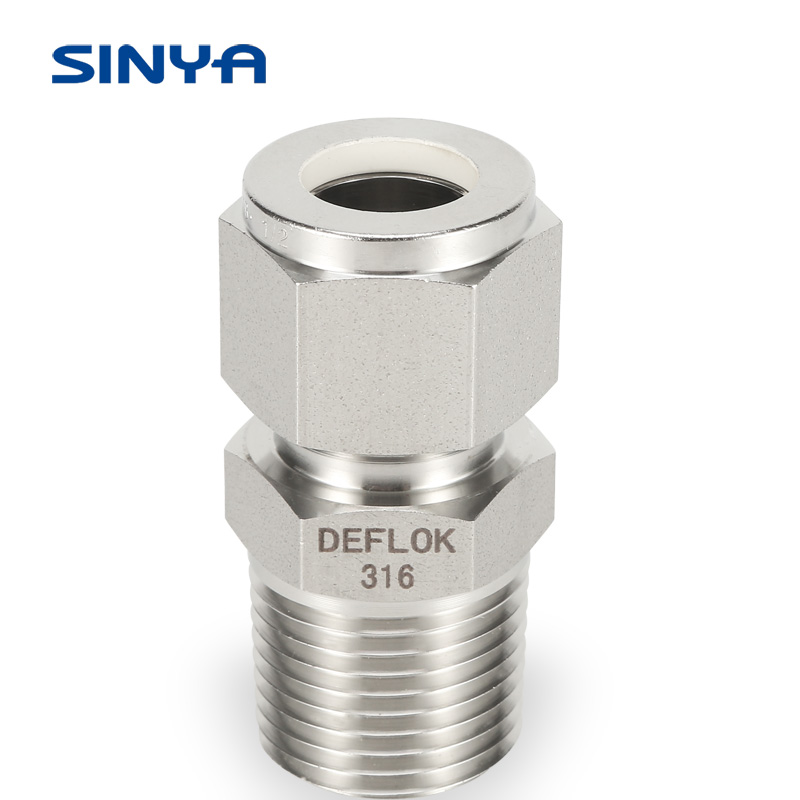

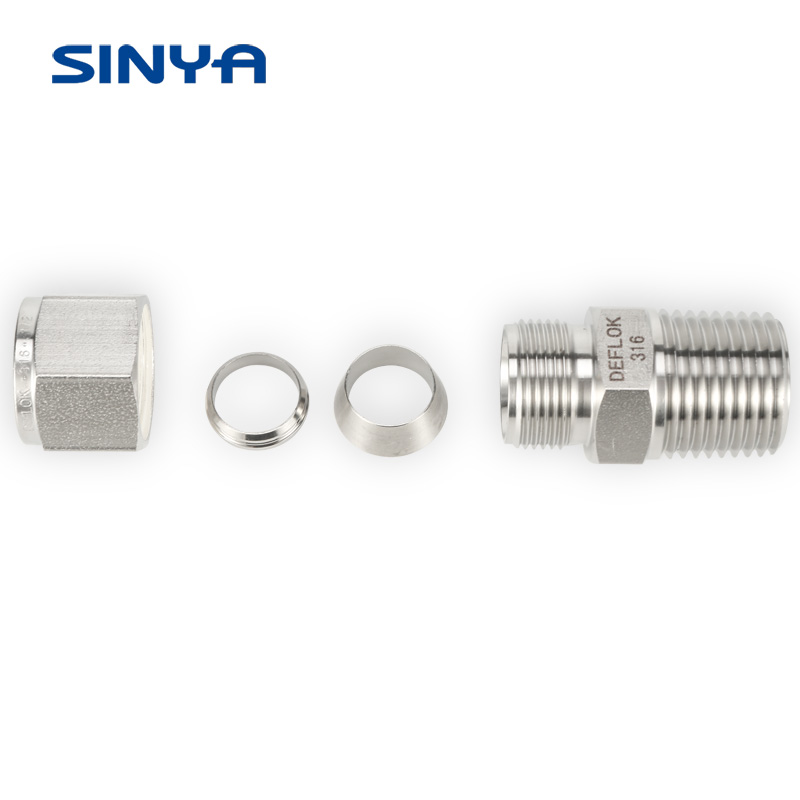

Compression Tube Union Fitting 316L Stainless Steel 3/8" x 10MM NPT Double Ferrule Fittings Male Connector 3/8 in. Tube x 3/8 in. NPT 1/2 Pipe Fitting Metal





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.

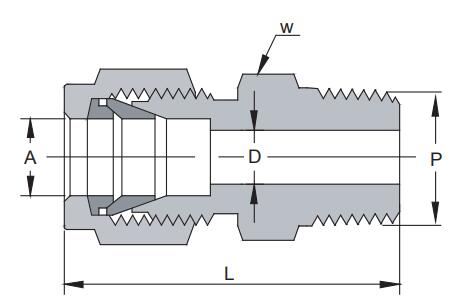

-SK1 (NPT) Male Connector(in)

Order information
A
P
D
W
L
in
mm
NPT
mm
in
mm
mm
-SK1-1-1
1/16
1.58
1/16
1.27
5/16
7.93
23.62
-SK1-1-2
1/16
1.58
1/8
1.27
7/16
11.11
26.10
-SK1-2-1
1/8
3.17
1/16
2.28
7/16
11.11
29.71
-SK1-2-2
1/8
3.17
1/8
2.28
7/16
11.11
29.71
-SK1-2-4
1/8
3.17
1/4
2.28
9/16
14.28
35.56
-SK1-3-2
3/16
4.76
1/8
3.04
7/16
11.11
31.24
-SK1-3-4
3/16
4.76
1/4
3.04
9/16
14.28
26.32
-SK1-4-1
1/4
6.35
1/16
3.04
1/2
12.70
32.76
-SK1-4-2
1/4
6.35
1/8
4.82
1/2
12.70
32.76
-SK1-4-4
1/4
6.35
1/4
4.82
9/16
14.28
37.85
-SK1-4-6
1/4
6.35
3/8
4.82
11/16
17.46
38.35
-SK1-4-8
1/4
6.35
1/2
4.82
7/8
22.22
44.70
-SK1-5-2
5/16
7.93
1/8
4.82
9/16
14.28
34.03
-SK1-5-4
5/16
7.93
1/4
6.65
9/16
14.28
38.60
-SK1-6-2
3/8
9.52
1/8
4.82
5/8
15.87
35.05
-SK1-6-4
3/8
9.52
1/4
7.11
5/8
15.87
39.87
-SK1-6-6
3/8
9.52
3/8
7.11
11/16
17.46
39.87
-SK1-6-8
3/8
9.52
1/2
7.11
7/8
22.22
46.23
-SK1-6-12
3/8
9.52
3/4
7.11
11/16
26.98
47.75
-SK1-8-2
1/2
12.70
1/8
4.82
13/16
20.63
38.86
-SK1-8-4
1/2
12.70
1/4
7.11
13/16
20.63
43.43
-SK1-8-6
1/2
12.70
3/8
9.65
13/16
20.63
43.43
-SK1-8-8
1/2
12.70
1/2
10.41
7/8
22.22
49.02
-SK1-8-12
1/2
12.70
3/4
10.41
11/16
26.98
50.54
-SK1-8-16
1/2
12.70
1
10.41
13/8
34.92
57.15
-SK1-10-6
5/8
15.87
3/8
9.65
15/16
23.81
44.19
-SK1-10-8
5/8
15.87
1/2
11.90
15/16
23.81
49.02
-SK1-10-12
5/8
15.87
3/4
12.70
11/16
26.98
50.54
-SK1-12-8
3/4
19.05
1/2
12.70
11/16
26.98
50.54
-SK1-12-12
3/4
19.05
3/4
15.74
11/16
26.98
50.54
-SK1-12-16
3/4
19.05
1
15.74
13/8
34.92
57.15
-SK1-14-12
7/8
22.22
3/4
18.28
13/16
30.16
50.54
-SK1-16-12
1
25.40
3/4
18.28
13/8
34.92
57.40
-SK1-16-16
1
25.40
1
22.35
13/8
34.92
62.23
-SK1 (NPT) Male Connector(mm)

Order information
A
P
D
W
L
mm
NPT
mm
mm
mm
-SK1-3mm-2
3
1/8
2.4
12
30.5
-SK1-3mm-4
3
1/4
2.4
14
35.6
-SK1-4mm-2
4
1/8
2.4
12
31.2
-SK1-4mm-4
4
1/4
2.4
14
36.3
-SK1-6mm-2
6
1/8
4.8
14
32.8
-SK1-6mm-4
6
1/4
4.8
14
37.9
-SK1-6mm-6
6
3/8
4.8
18
38.4
-SK1-6mm-8
6
1/2
4.8
22
44.7
-SK1-8mm-2
8
1/8
4.8
15
34.2
-SK1-8mm-4
8
1/4
6.4
15
38.7
-SK1-8mm-6
8
3/8
6.4
18
39.3
-SK1-8mm-8
8
1/2
6.4
22
45.6
-SK1-10mm-2
10
1/8
4.8
18
36.3
-SK1-10mm-4
10
1/4
7.9
18
40.9
-SK1-10mm-6
10
3/8
7.9
18
40.9
-SK1-10mm-8
10
1/2
7.9
22
46.5
-SK1-10mm-12
10
3/4
7.9
27
48.0
-SK1-12mm-2
12
1/8
4.8
22
38.8
-SK1-12mm-4
12
1/4
7.1
22
43.4
-SK1-12mm-6
12
3/8
9.5
22
43.4
-SK 1-12mm-8
12
1/2
9.5
22
49.0
-SK1-12mm-12
12
3/4
