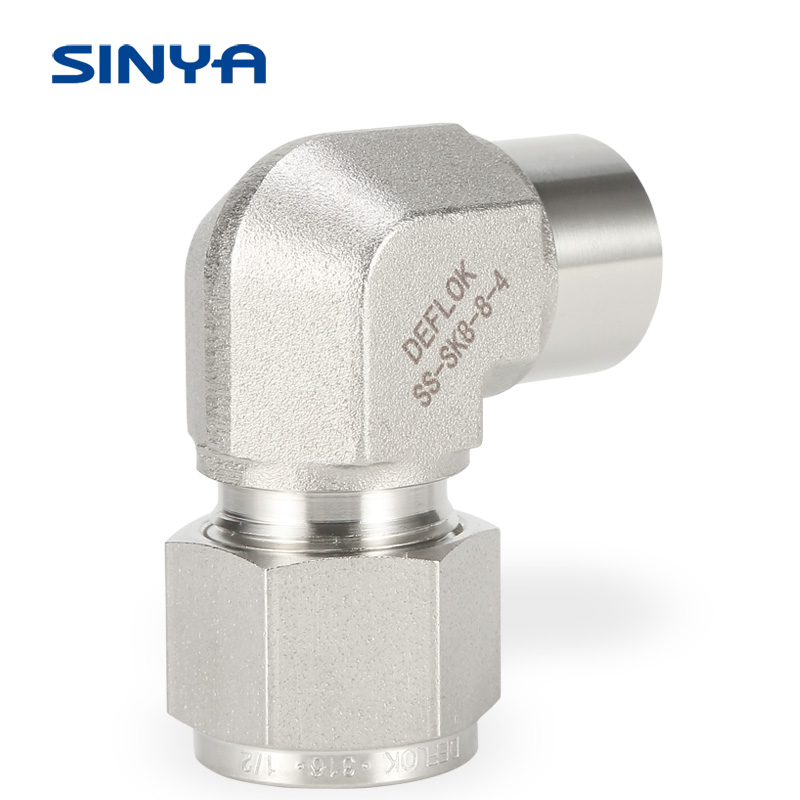

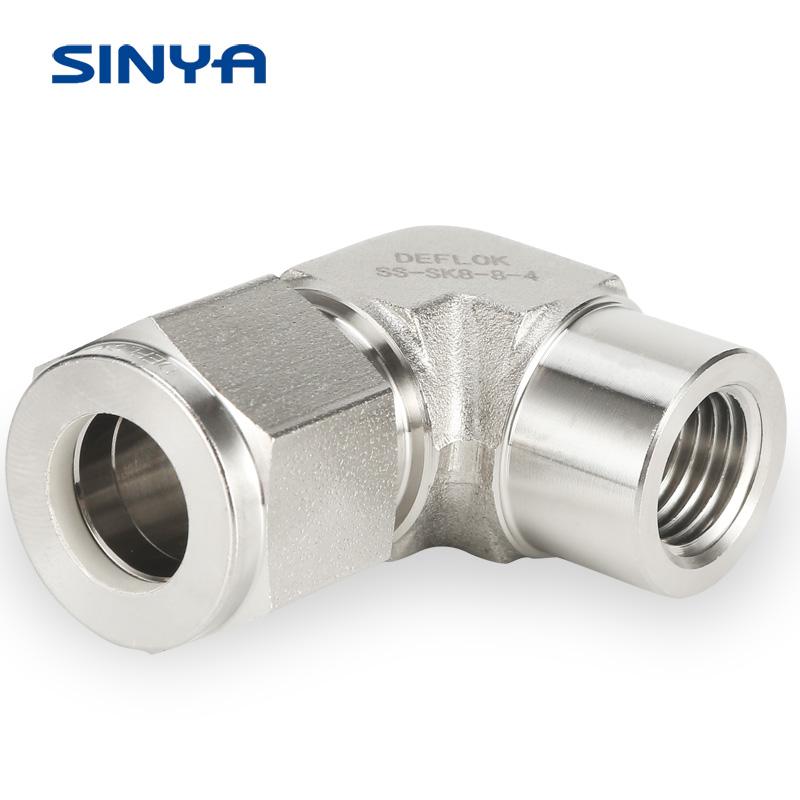

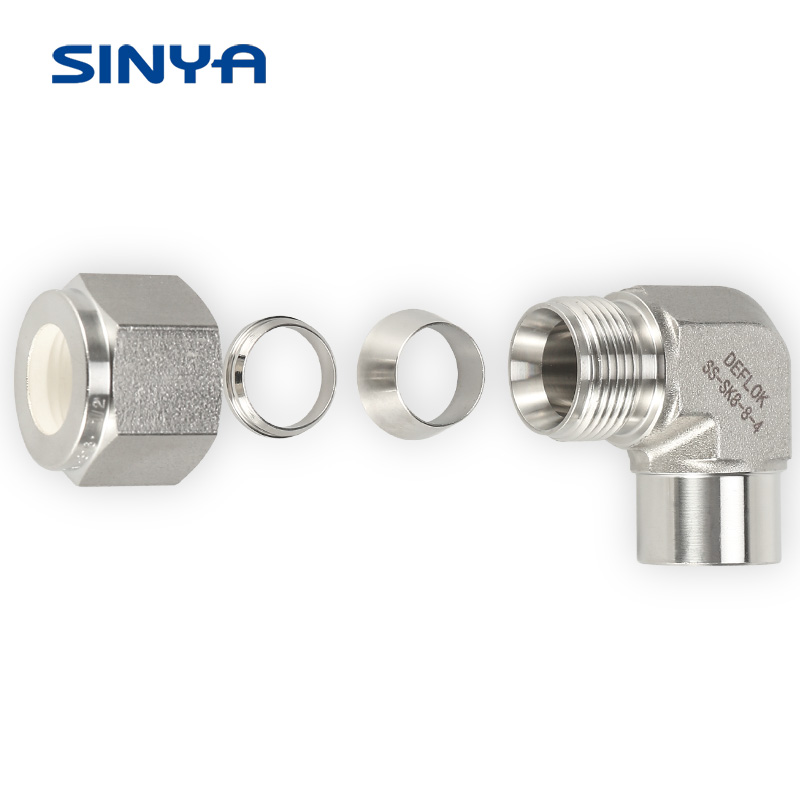

Metric Tube 90 Degrees Compression Tube Fitting 1/2" NPT to 12mm 316 Stainless Steel Twin Ferrule Female Elbows Stainless Steel 316 6000psi Forged Body 1/2 od Duplex Monel Double Ferrule Compression





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.

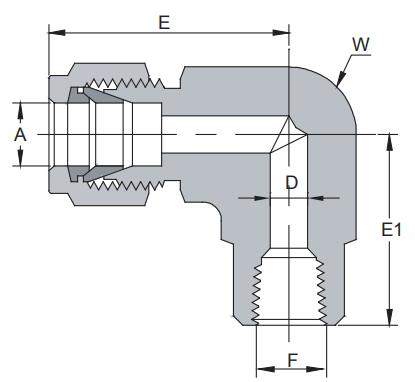

  -SK8 Female Elbow(in)

Ordering Number
      A
P
D
W
E
E1
in
mm
 NPT-F
mm
in
mm
mm
mm
-SK8-2-2
1/8
3.17
1/8
2.28
5/8
15.87
24.64
19.05
-SK8-2-4
1/8
3.17
1/4
2.28
13/16
20.63
27.43
22.35
-SK8-3-2
3/16
4.76
1/8
3.04
5/8
15.87
25.90
19.05
-SK8-4-2
1/4
6.35
1/8
4.82
5/8
15.87
26.92
19.05
-SK8-4-4
1/4
6.35
1/4
4.82
13/16
20.63
29.72
22.35
-SK8-4-6
1/4
6.35
3/8
4.82
15/16
23.81
31.75
22.35
-SK8-4-8
1/4
6.35
1/2
4.82
11/8
28.60
34.54
28.45
-SK8-5-2
5/16
9.52
1/8
6.35
5/8
15.87
28.70
19.05
-SK8-5-4
5/16
7.93
1/4
6.35
13/16
20.63
30.48
22.35
-SK8-6-2
3/8
7.93
1/8
7.11
5/8
15.87
30.48
19.05
--SK8-6-4
3/8
9.52
1/4
7.11
13/16
20.63
31.24
22.35
-SK8-6-6
3/8
9.52
3/8
7.11
15/16
23.81
33.27
22.35
-SK8-6-8
3/8
9.52
1/2
7.11
11/8
28.60
36.07
28.45
-SK8-8-4
1/2
12.70
1/4
10.41
13/16
20.63
36.07
22.35
-SK8-8-6
1/2
12.70
3/8
10.41
15/16
23.81
36.07
22.35
-SK8-8-8
1/2
12.70
1/2
10.41
11/8
28.60
36.86
28.44
-SK8-10-6
5/8
15.87
3/8
12.70
15/16
28.60
38.10
22.35
-SK8-10-8
5/8
15.87
1/2
12.70
1 1/8
28.60
39.88
28.44
-SK8-12-8
3/4
19.05
1/2
15.74
1 1/8
28.60
39.88
28.44
-SK8-12-12
3/4
19.05
3/4
15.74
1 3/8
34.92
44.70
31.75
-SK8-14-12
7/8
22.22
3/4
18.28
1 3/8
34.92
44.70
31.75
-SK8-16-12
1
25.40
3/4
22.35
1 3/8
34.92
49.02
31.75
-SK8-16-16
1
25.40
1
22.35
1 11/16
42.86
53.59
38.10
 -SK8 Female Elbow(mm)

Order information
A
P
D
W
E
E1
mm
NPT
mm
in
mm
mm
mm
-SK8-6mm-2
6
1/8
4.80
5/8
15.90
27.00
19.10
-SK8-6mm-4
6
1/4
4.80
13/16
20.60
29.80
22.40
-SK8-10mm-4
10
1/4
7.90
13/16
20.60
33.50
22.40
-SK8-12mm-4
12
1/4
9.50
13/16
20.60
36.00
22.40
-SK8-12mm-8
12
1/2
9.50
11/8
30.00
38.80
28.50
